392-104 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 104POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Contact Material	Card Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature	Termination	Gender	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Read Out	Number of Positions/Bay/Row	Number of Positions	Pitch	Pitch	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 392-104-540-207	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm

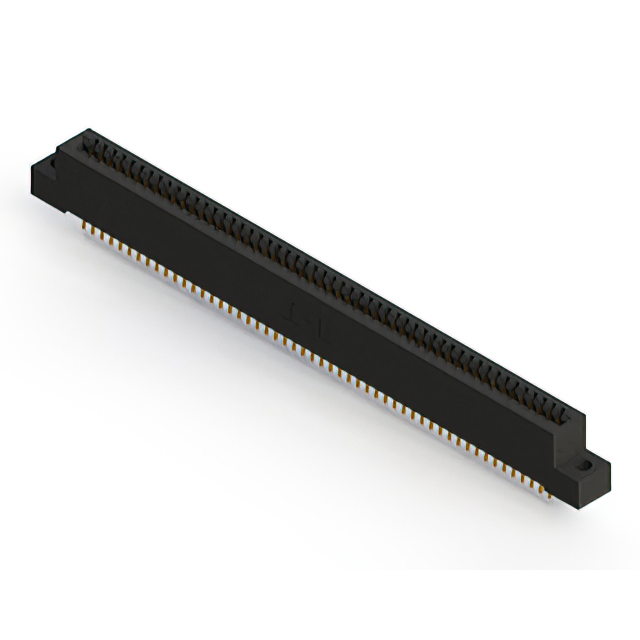

EDAC Inc. 392-104-556-204	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	Solder	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm	Card Extender	0.156 "	3.96 mm
EDAC Inc. 392-104-541-204	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	Flush Mount Top Opening Unthreaded	Wire Wrap	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm		0.156 "	3.96 mm
EDAC Inc. 392-104-555-202	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm	Card Extender	0.128 "	3.25 mm
EDAC Inc. 392-104-558-208	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Right Angle Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Solder Wire Wrap	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm
EDAC Inc. 392-104-560-202	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	Solder	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm	Card Extender	0.128 "	3.25 mm

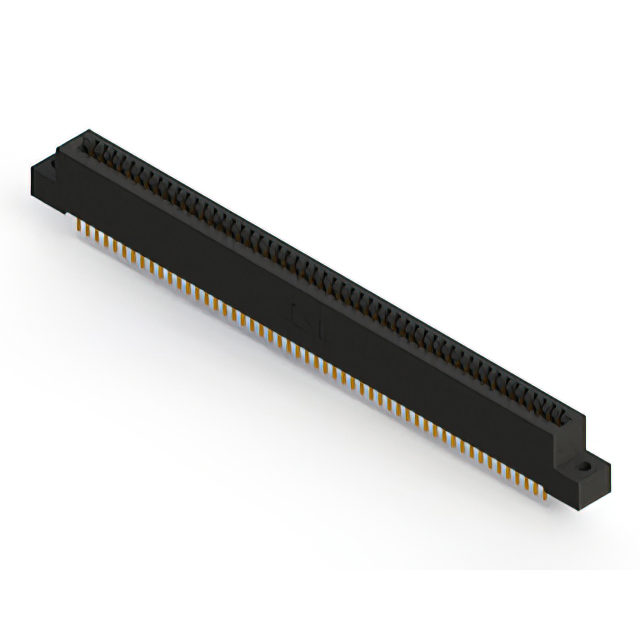

EDAC Inc. 392-104-521-202	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	Flush Mount Top Opening Unthreaded	Solder	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm		0.128 "	3.25 mm
EDAC Inc. 392-104-555-204	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	Solder Eyelet(s)	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm	Card Extender	0.156 "	3.96 mm
EDAC Inc. 392-104-559-208	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Right Angle Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Solder Wire Wrap	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm
EDAC Inc. 392-104-520-203	2	Polyester Thermoplastic	2	Copper Alloy	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	Floating Bobbin Flush Mount	Solder	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	-40 C	105 ░C	Gold	Dual	52	104	0.1 "	2.54 mm		0.116 "	2.95 mm
