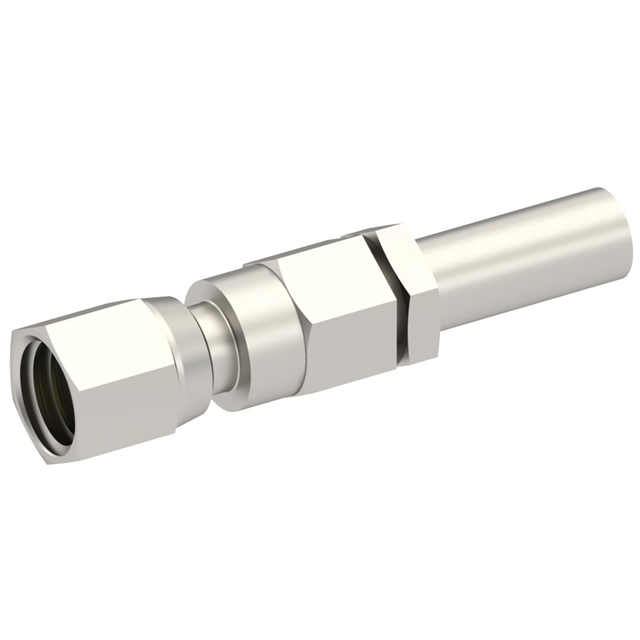

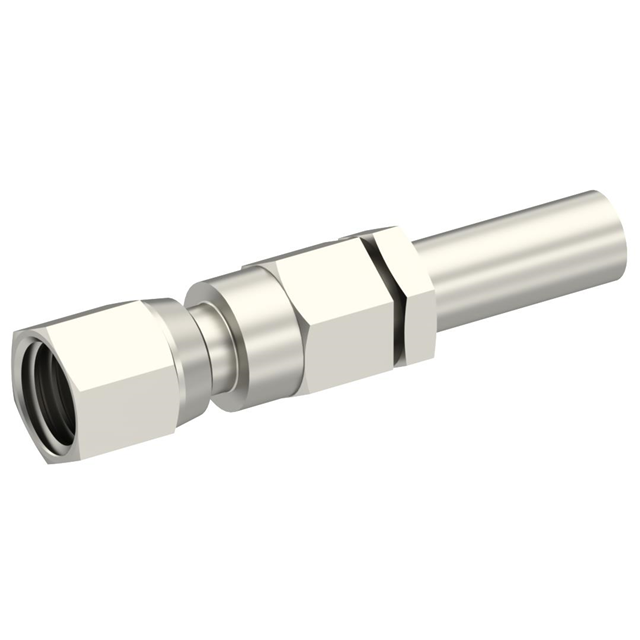

1002-7571 Series
Manufacturer: Radiall USA, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SMC F STR NA CR 2.6/50S
| Part | Connector Type | Contact Termination | Center Contact Material | Fastening Type | Impedance | Connector Style | Mounting Type | Shield Termination | Frequency - Max | Housing Color | Number of Ports | Cable Group | Voltage Rating | Center Contact Plating | Dielectric Material | Insertion Loss | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Female Socket Plug | Crimp | Brass | Threaded | 50 Ohm | SMC | Free Hanging (In-Line) | Crimp | 10 GHz | Silver | 1 | 179 316 RG-174 | 335 V | Gold | Polytetrafluoroethylene (PTFE) | 0.25 dB | Brass | -65 °C | 165 °C | Nickel | 500 cycles |
 Radiall USA, Inc. | Female Socket Plug | Crimp | Beryllium Copper | Threaded | 50 Ohm | SMC | Free Hanging (In-Line) | Crimp | 10 GHz | Silver | 1 | 196 RG-178 | 250 V | Gold | Polytetrafluoroethylene (PTFE) | 0.25 dB | Brass | -65 °C | 165 °C | Nickel | 500 cycles |
Radiall USA, Inc. | Female Socket Plug | Crimp | Beryllium Copper | Threaded | 50 Ohm | SMC | Free Hanging (In-Line) | Crimp | 10 GHz | Silver | 1 | 179 316 RG-174 | 335 V | Gold | Polytetrafluoroethylene (PTFE) | 0.25 dB | Brass | -65 °C | 165 °C | Nickel | 500 cycles |
