725-049 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 49POS 0.100

Part	Read Out	Mounting Type	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Rows	Card Type	Termination Rows	Number of Positions	Contact Type	Number of Positions/Bay/Row	Color	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Material - Insulation	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]

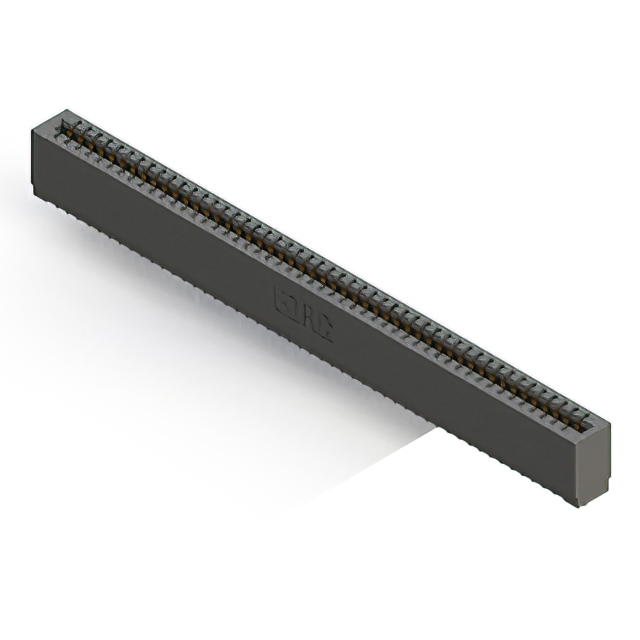

EDAC Inc. 725-049-525-101	Single	Through Hole	Press-Fit	Female	30 Áin	0.76 Ám	Copper Alloy	1	Non Specified - Single Edge	1	49	Cantilever	49	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Polyester Thermoplastic	Gold	-40 C	105 ░C
EDAC Inc. 725-049-545-101	Single	Through Hole	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Copper Alloy	1	Non Specified - Single Edge	1	49	Cantilever	49	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Polyester Thermoplastic	Gold	-40 C	105 ░C
EDAC Inc. 725-049-541-101	Single	Through Hole	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Copper Alloy	1	Non Specified - Single Edge	1	49	Cantilever	49	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Polyester Thermoplastic	Gold	-40 C	105 ░C

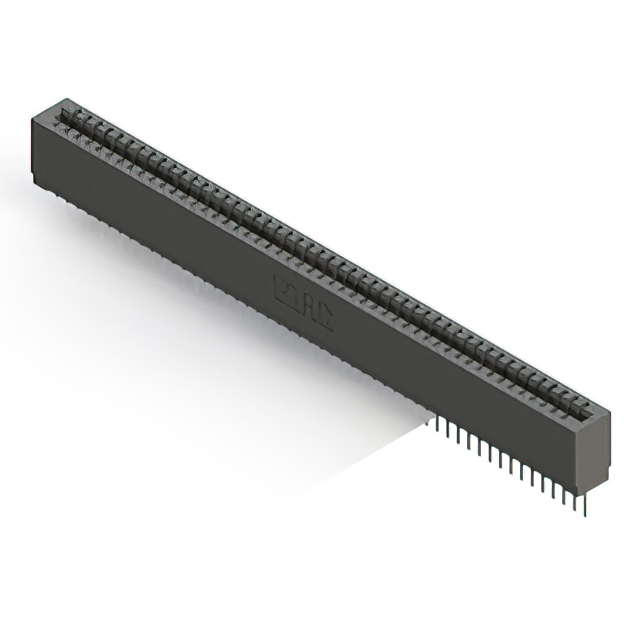

EDAC Inc. 725-049-522-101	Single	Through Hole	Press-Fit	Female	30 Áin	0.76 Ám	Copper Alloy	1	Non Specified - Single Edge	1	49	Cantilever	49	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Polyester Thermoplastic	Gold	-40 C	105 ░C
EDAC Inc. 725-049-540-101	Single	Through Hole	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Copper Alloy	1	Non Specified - Single Edge	1	49	Cantilever	49	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Polyester Thermoplastic	Gold	-40 C	105 ░C
