69830 Series

Catalog

64-QKE DIL PCB CONNECTOR

Part	Number of Rows	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Cable Pitch	Cable Pitch	Board-Side Pitch	Board-Side Pitch	Contact Finish	Number of Positions Loaded	Number of Positions	Cable Termination	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Features
Amphenol ICC (FCI) 69830-064	2	0.1 in	2.54 mm	2.54 µm	100 µin	Through Hole IDC	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin-Lead	All	64	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through

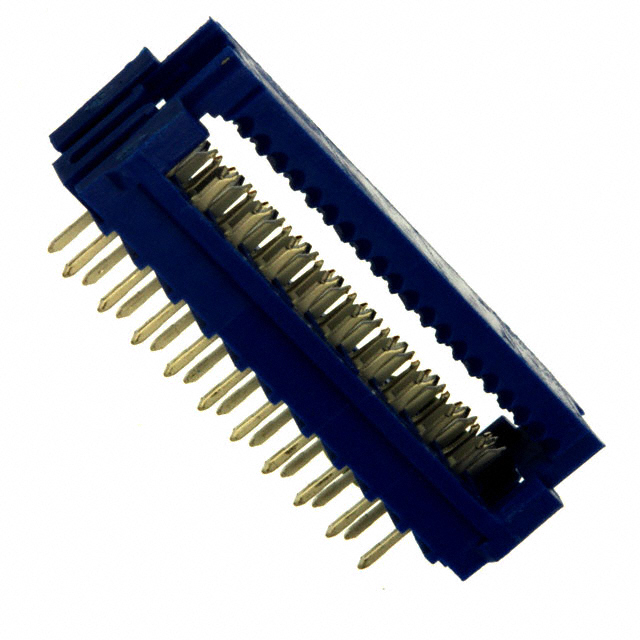

Amphenol ICC (FCI) 69830-020LF	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin	All	20	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through

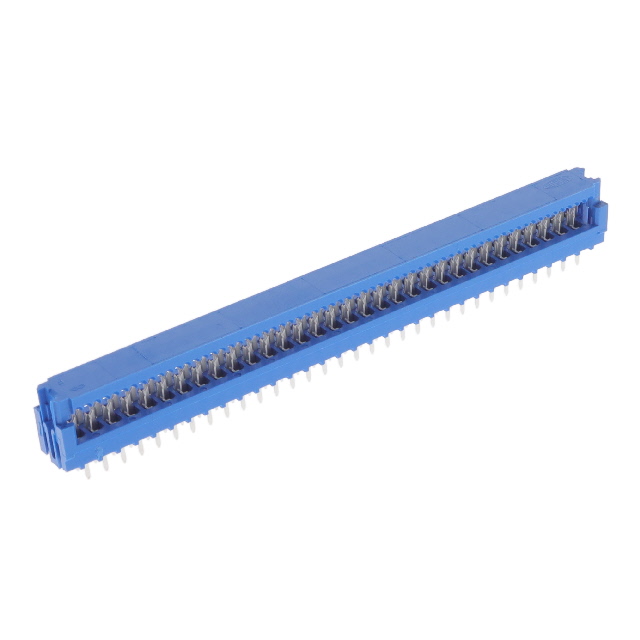

Amphenol ICC (FCI) 69830-064LF	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin	All	64	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through
Amphenol ICC (FCI) 69830-040	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin-Lead	All	40	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through
Amphenol ICC (FCI) 69830-034	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin-Lead	All	34	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through

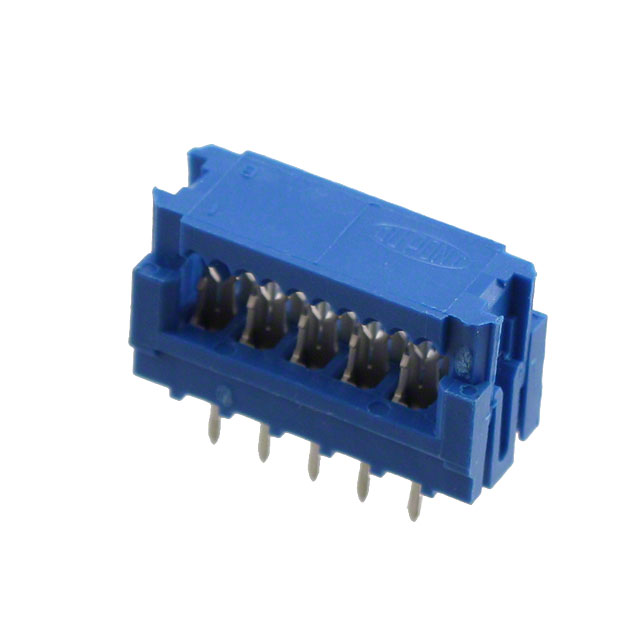

Amphenol ICC (FCI) 69830-010LF	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin	All	10	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through

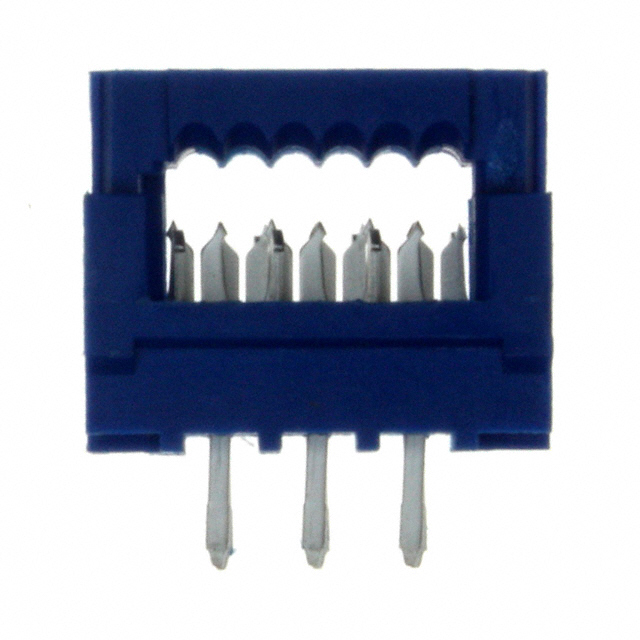

Amphenol ICC (FCI) 69830-006LF	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin	All	6	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through

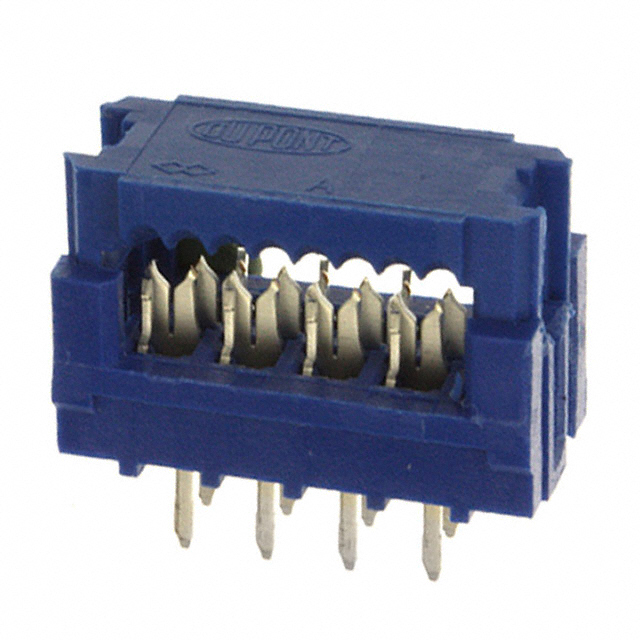

Amphenol ICC (FCI) 69830-008LF	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin	All	8	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through
Amphenol ICC (FCI) 69830-008	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin-Lead	All	8	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through

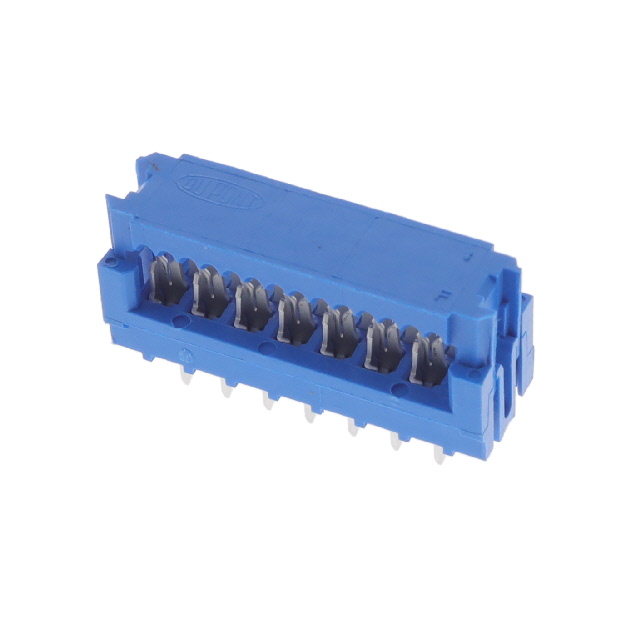

Amphenol ICC (FCI) 69830-014LF	2	0.1 in	2.54 mm	150 Áin	150 µin	Through Hole	Blue	1.27 mm	0.05 in	0.1 in	2.54 mm	Tin	All	14	IDC	DIP Header Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through
