CS1207S Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Termination Style	Mounting Type	Operating Force	Actuator Length, Right Angle	Actuator Type	Circuit	Illumination	Outline [x]	Outline [y]	Switch Function	Actuator Orientation	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length, Right Angle [x]

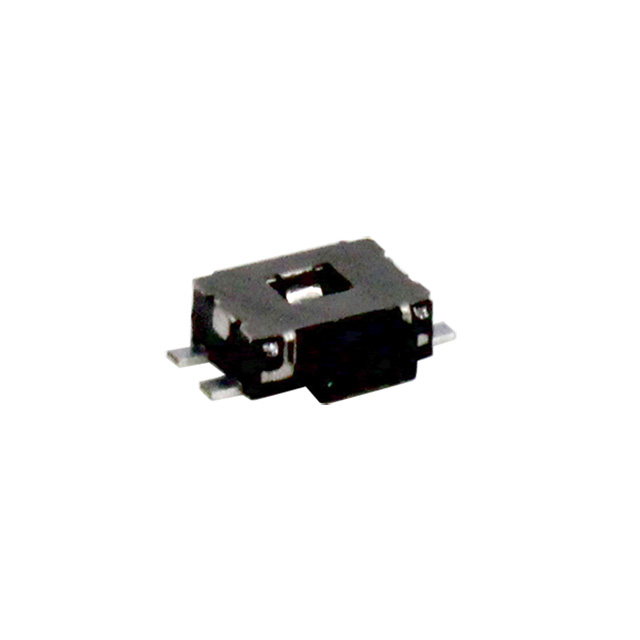

CIT Relay and Switch CS1207SF160	Polyamide (PA6T) Nylon 6T	0.3 mm	Gull Wing	Right Angle Surface Mount	160 gf	1.6 mm	Rectangular Button	SPST-NO	Non-Illuminated	6 mm	3.5 mm	Off-Mom	Side Actuated	0.05 A 50 VDC	85 °C	-40 C

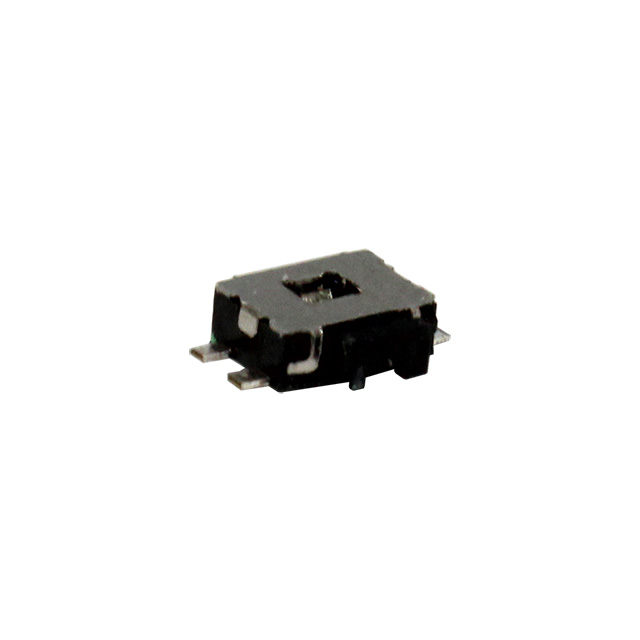

CIT Relay and Switch CS1207SMF160	Polyamide (PA6T) Nylon 6T	0.3 mm	Gull Wing	Right Angle Surface Mount	160 gf	1.6 mm	Rectangular Button	SPST-NO	Non-Illuminated	6 mm	3.5 mm	Off-Mom	Side Actuated	0.05 A 50 VDC	85 °C	-40 C

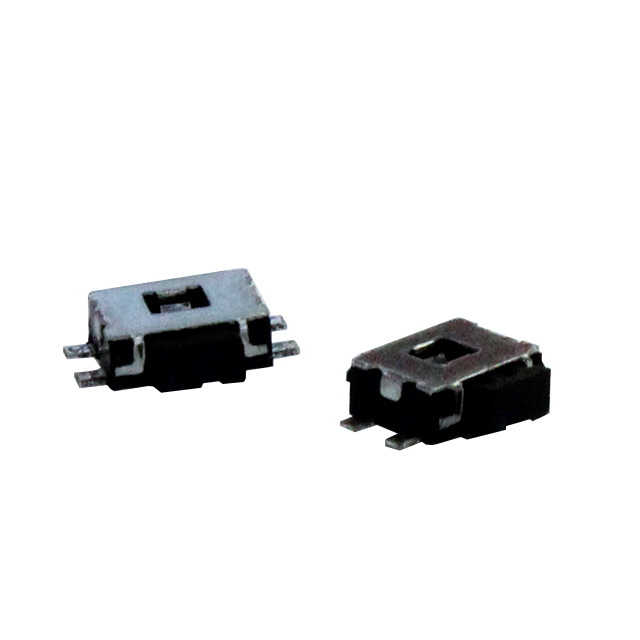

CIT Relay and Switch CS1207SF250	Polyamide (PA46) Nylon 4/6	0.3 mm	Gull Wing	Right Angle Surface Mount	0.25 kgf		Rectangular Button	SPST-NO	Non-Illuminated	4.7 mm	3.5 mm	Off-Mom	Side Actuated	0.05 A 50 VDC	85 °C	-40 C	4.5 mm
