DILB24P Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

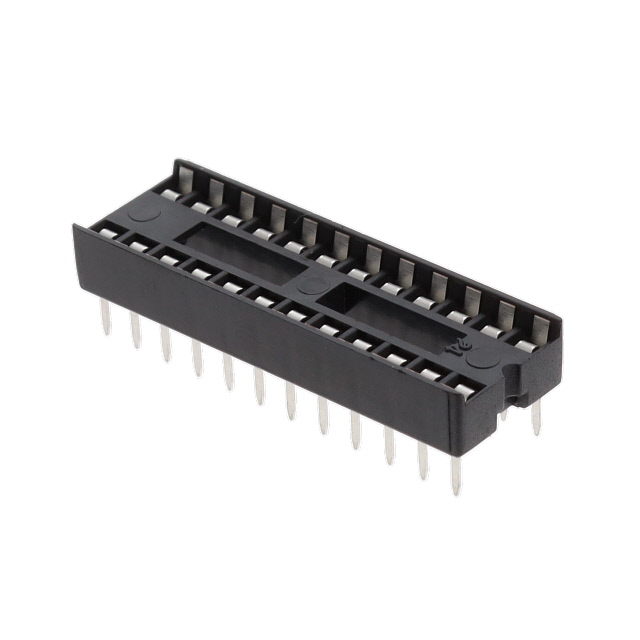

CONN IC DIP SOCKET 24POS TINLEAD
| Part | Pitch - Post | Pitch - Post | Type | Type | Type | Features | Contact Finish - Mating | Current Rating (Amps) | Contact Material - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Resistance | Contact Finish - Post | Termination | Housing Material | Contact Material - Post [custom] | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination Post Length | Termination Post Length | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 2.54 mm | 0.1 in | 0.3 " | 7.62 mm | DIP | Open Frame | Tin-Lead | 1 A | Copper Alloy | UL94 V-0 | -55 °C | 125 °C | 30 mOhm | Tin-Lead | Solder | Polyamide (PA) Nylon | Copper Alloy | Through Hole | 2.54 µm | 100 µin | 3.15 mm | 0.124 in | 0.1 in | 2.54 mm | 2.54 çm | 100 çin | 24 |
