SRN.M0 Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Insert Material | Orientation | Shell Material | Connector Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Contact Finish - Mating | Fastening Type | Shell Size - Insert | Color | Primary Material | Current Rating (Amps) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Applications | Backshell Material, Plating | Number of Positions | Ingress Protection | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

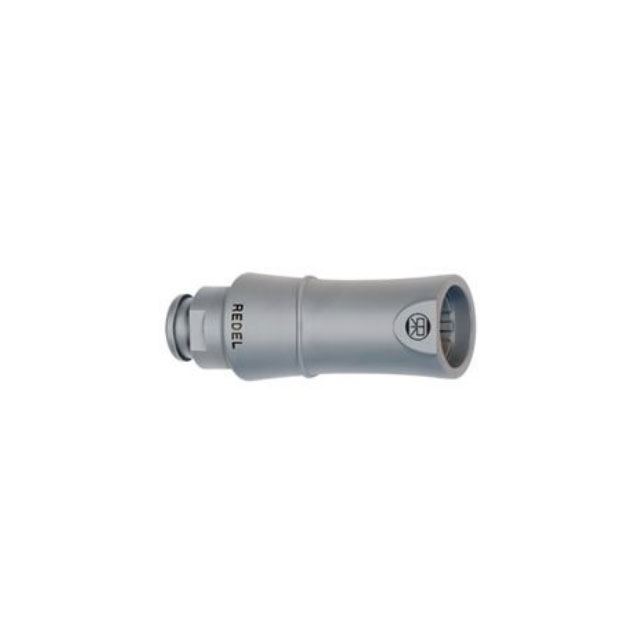

LEMO | Polyetheretherketone (PEEK) | N (Normal) | Sulfone | Receptacle Female Sockets | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Gold | Push-Pull | M04 | Gray | Plastic | 11.5 A | Unshielded | 170 °C | -50 °C | Free Hanging (In-Line) | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | Sulfone | 4 | IP50 - Dust Protected | |

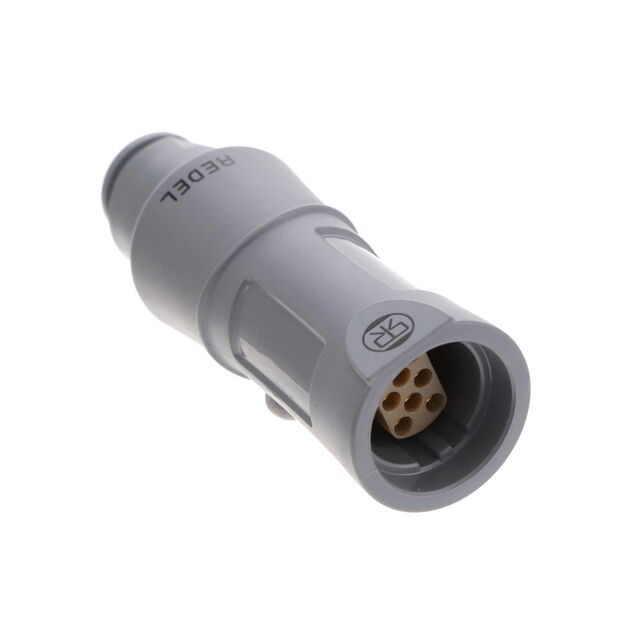

 LEMO | Polyetheretherketone (PEEK) | N (Normal) | Sulfone | Receptacle Female Sockets | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Gold | Push-Pull | M08 | Gray | Plastic | 5 A | Unshielded | 170 °C | -50 °C | Free Hanging (In-Line) | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | Sulfone | 8 | IP50 - Dust Protected | |
 LEMO | Polyetheretherketone (PEEK) | N (Normal) | Sulfone | Receptacle Female Sockets | 0.157 in | 0.205 in | Gold | Push-Pull | M04 | Gray | Plastic | 11.5 A | Unshielded | 170 °C | -50 °C | Free Hanging (In-Line) | Backshell | Automotive Industrial Medical Testing Equipment & Measurement | Sulfone | 4 | IP50 - Dust Protected | 4 mm 5.2 mm |
