1744036 Series

Catalog

06P ECONOMY POWER .200 CL HSG

Part	Note	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Fastening Type	Insulation Material	Features	Number of Positions	Color	Contact Type	Number of Rows	Pitch	Pitch
TE Connectivity AMP Connectors 2-1744036-6	Contacts Not Included	Crimp	105 ░C	-25 °C	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)	Terminal Position Lock (TPA)	6	Natural	Female Socket	1	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1744036-3	Contacts Not Included	Crimp	105 ░C	-25 °C	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)			Natural	Female Socket	1	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1744036-7	Contacts Not Included	Crimp	105 ░C	-25 °C	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)		7	Natural	Female Socket	1	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1744036-2	Contacts Not Included	Crimp	105 ░C	-25 °C	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)		2	Natural	Female Socket	1	5.08 mm	0.2 in

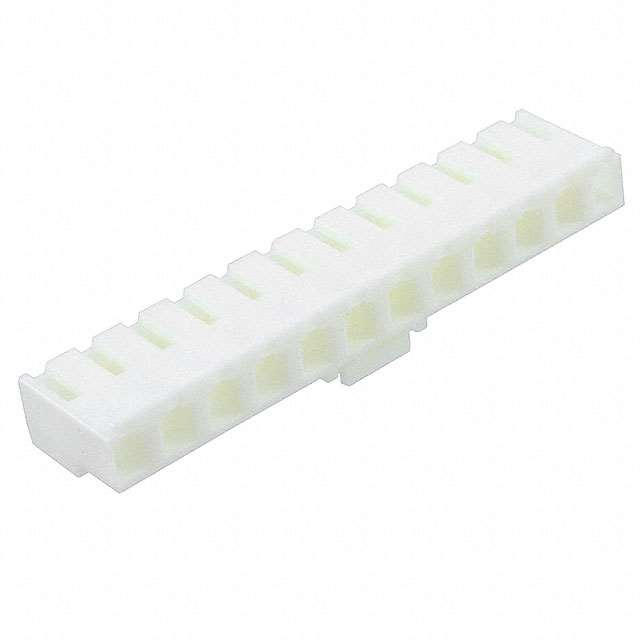

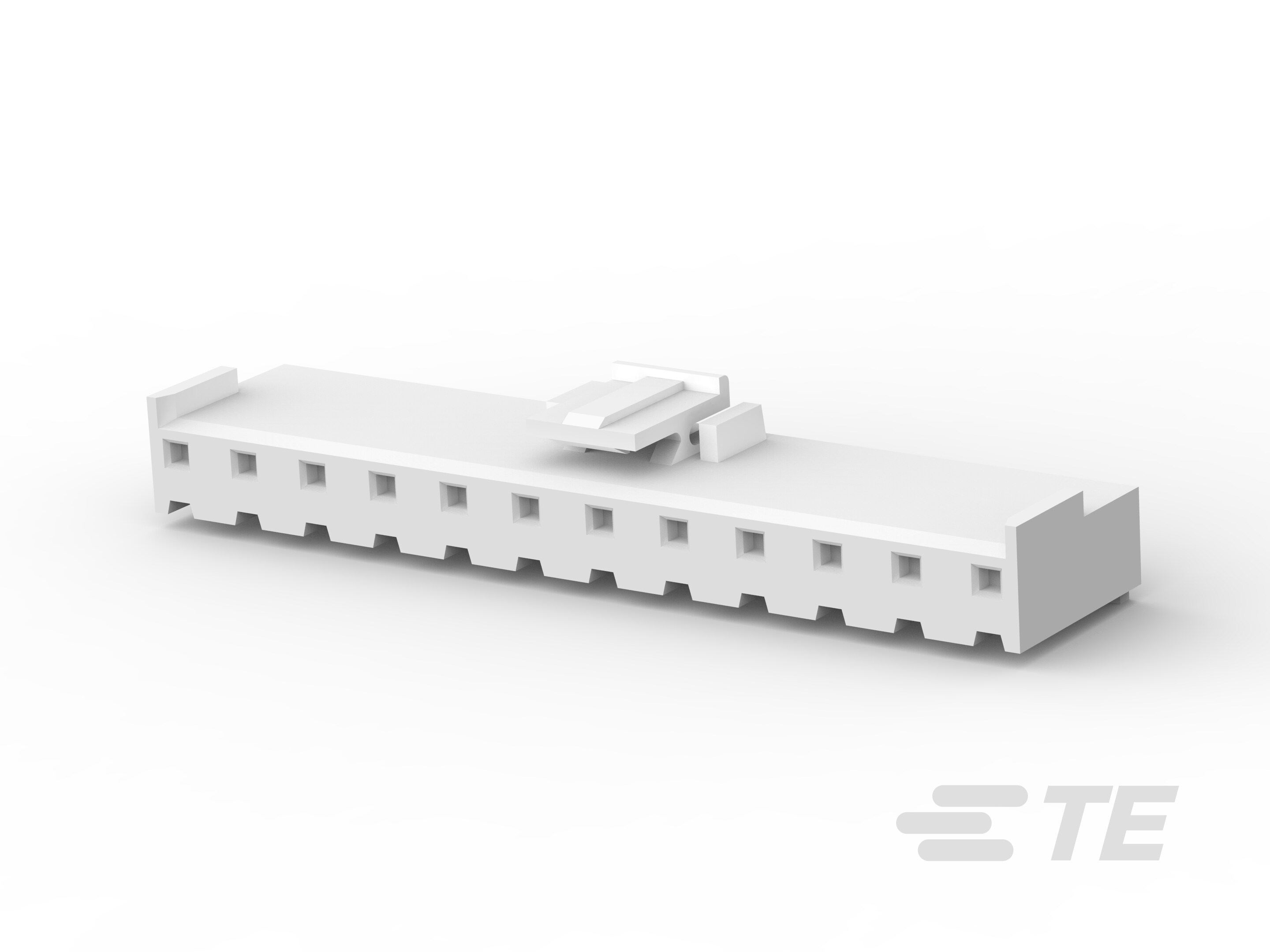

TE Connectivity AMP Connectors 1-1744036-2	Contacts Not Included	Crimp	105 ░C	-25 °C	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)		12	Natural	Female Socket	1	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1744036-6	Contacts Not Included	Crimp	105 ░C	-25 °C	Receptacle	Free Hanging (In-Line)	Latch Lock	Nylon Polyamide (PA)		6	Natural	Female Socket	1	5.08 mm	0.2 in
