65203CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

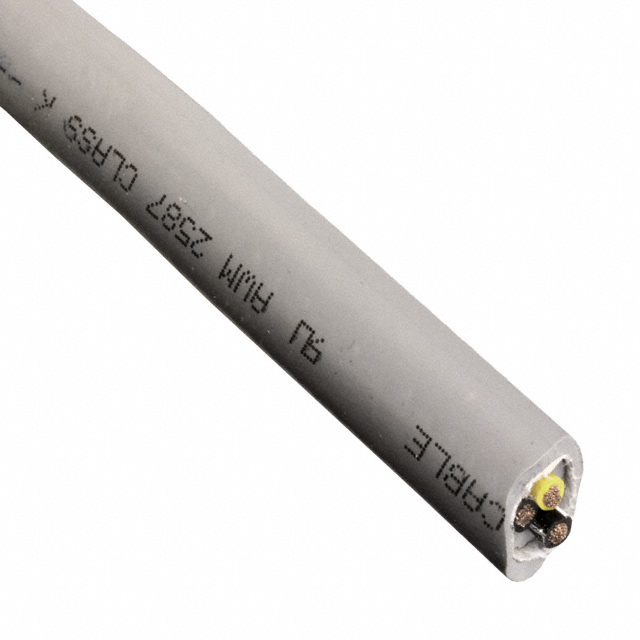

MULTI-CONDUCTOR CABLES 12 AWG 3 CONDUCTOR 600V BRAID PVC PVC, 500 FT SPOOL - SLATE
| Part | Shield Coverage | Shield Material | Length | Length | Voltage | Conductor Insulation | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Features | Shield Type | Wire Gauge | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 152.4 m | 500 ft | 600 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.06 in | 1.524 mm | 0.53 in | 13.46 mm | Slate | Copper Bare | 30 AWG | 65 | ISO 10993 UL Style 2587 | Biological Compatibility | Braid | 12 AWG | 3 |
ALPHA WIRE | 85 % | Copper Tinned | 304.8 m | 1000 ft | 600 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.06 in | 1.524 mm | 0.53 in | 13.46 mm | Slate | Copper Bare | 30 AWG | 65 | ISO 10993 UL Style 2587 | Biological Compatibility | Braid | 12 AWG | 3 |
