747841 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

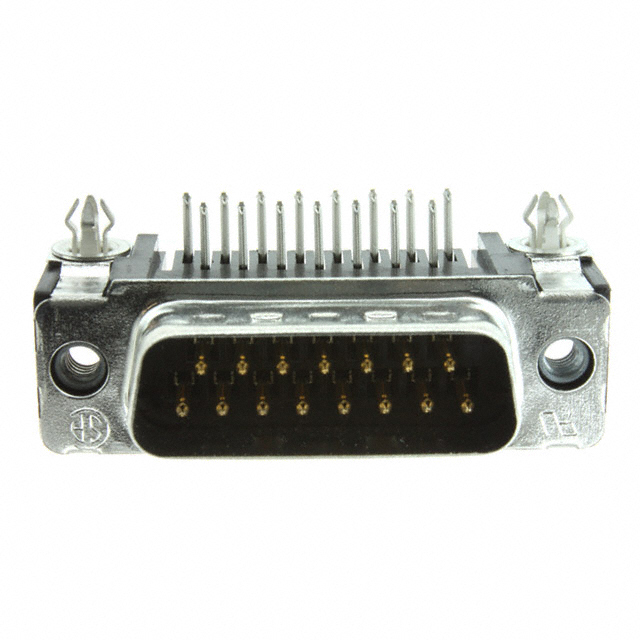

CONN D-SUB PLUG 15POS R/A SLDR
| Part | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Termination | Backset Spacing | Backset Spacing | Connector Style | Contact Finish | Features | Contact Type | Number of Rows [custom] | Flange Feature | Current Rating (Amps) | Number of Positions | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Brass | 125 VDC | -55 C | 105 ░C | Plug Male Pins | Solder | 8.08 mm | 0.318 " | D-Sub | Gold | Board Lock Ground Strap Grounding Indents | Signal | 2 | Housing/Shell (Unthreaded) | 6 A | 15 | UL94 V-0 | Right Angle Through Hole | 2 | ||
 TE Connectivity AMP Connectors | Black | Brass | 125 VDC | -55 C | 105 ░C | Plug Male Pins | Solder | 8.08 mm | 0.318 " | D-Sub | Gold | Board Lock Ground Strap Grounding Indents | Signal | 2 | Housing/Shell | 6 A | 15 | UL94 V-0 | Right Angle Through Hole | 2 | Flash | 4-40 |
