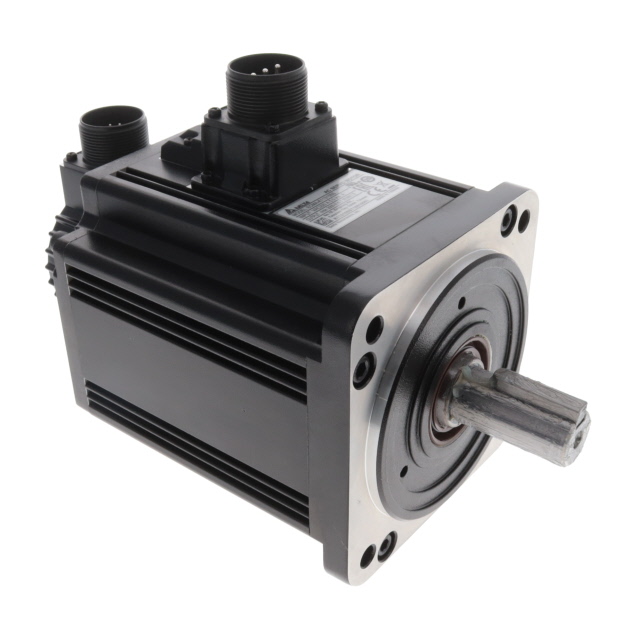

ECMA-K Series
Manufacturer: Delta Electronics/Industrial Automation
Beta
⌘K
SERVOMOTOR 2000 RPM 400V
| Part | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Encoder Type | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Power - Rated | Termination Style | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Function | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | RPM | Type | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Industrial Automation | CE cURus | 40 °C | 0 °C | Incremental | 2.165 in | 55 mm | 1500 W | Cable with Connector | 7160 mNm | 1014 oz-in | Servomotor | 5.709 in | 145 mm | 2000 RPM | AC Motor | Key Oil Seal | 130 mm | 5.118 in | 130 mm | 5.118 " | 400 VAC | 22 mm | 0.866 in | 3042 oz-in | 21480 mNm |
 Delta Electronics/Industrial Automation | CE cURus | 40 °C | 0 °C | Incremental | 2.165 in | 55 mm | 1500 W | Cable with Connector | 7160 mNm | 1014 oz-in | Servomotor | 5.709 in | 145 mm | 2000 RPM | AC Motor | Brake Key Oil Seal | 130 mm | 5.118 in | 130 mm | 5.118 " | 400 VAC | 22 mm | 0.866 in | 3042 oz-in | 21480 mNm |
