A8L-11-15 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

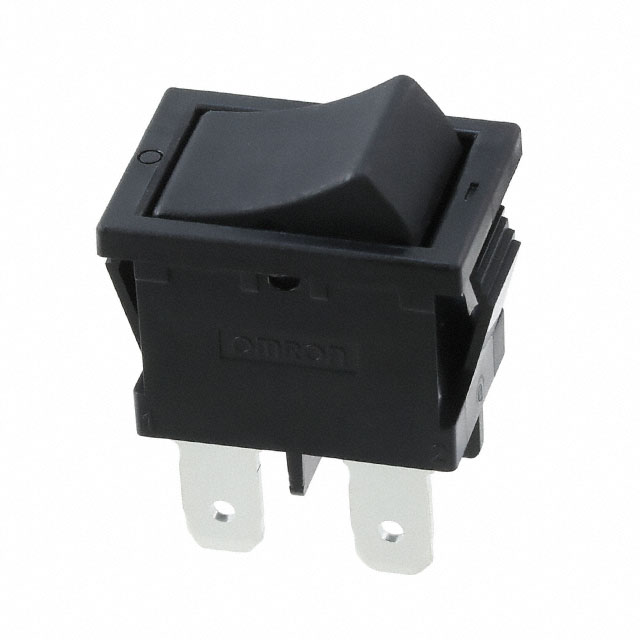

ROCKER SWITCH, SPST, BLACK, PANEL, 10 A, 250 V ROHS COMPLIANT: YES
| Part | Electrical Life | Mechanical Life | Circuit | Actuator Type | Current Rating (Amps) | Switch Function | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Termination Style | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10000 Cycles | 50000 Cycles | SPST | Concave (Curved) | 10 A | On-Off | cULus EN UL | 55 °C | -20 ░C | Panel Mount Snap-In | No Marking | 12.9 mm | 19.2 mm | 125 V | Quick Connect | Black |
