GTB040 Series

Catalog

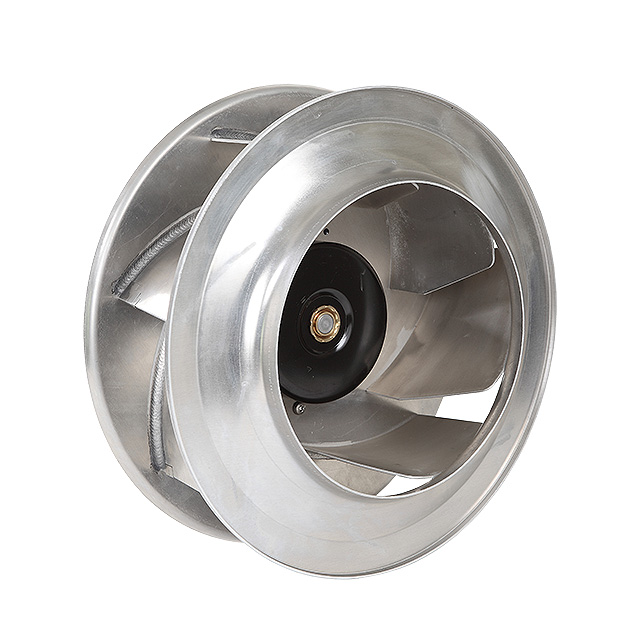

FAN BLWR CENT 400X203MM 230VAC

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Material - Blade [custom]	Current Rating (Amps)	Air Flow	Air Flow	Ingress Protection	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Width [y]	Voltage - Rated	Weight	Weight	Fan Type	Features	Power (Watts)	Noise	Bearing Type	RPM	Width [x]	Weight [custom]	Weight [custom]	Termination
Delta Electronics GTB040FUC20R	277 VAC	200 VAC	Aluminum	Aluminum	3.1 A	1857 CFM	52 m³/min	IP54 - Dust Protected Water Resistant	562.9 Pa	2.26 in H2O	-25 °C	60 °C	Round	404 mm	cUL TUV UL	203 mm	230 VAC	14 lbs	6.4 kg	Motorized Impellers	PWM Control	244 W	74 dB(A)	Ball	1600 RPM
Delta Electronics GTB040FUC23R N1	277 VAC	200 VAC	Aluminum	Aluminum	3.1 A	2068 CFM	57.9 m³/min	IP54 - Dust Protected Water Resistant			-25 °C	60 °C	Round	404 mm	cUL TUV UL		230 VAC	16 lbs	7.3 kg	Motorized Impellers	PWM Control	250 W	76 dB(A)	Ball	1500 RPM	227.3 mm
Delta Electronics GTB040PUD26R	480 VAC	380 VAC	Aluminum	Aluminum	1.75 A	3532 CFM	98.9 m³/min	IP54 - Dust Protected Water Resistant	755 Pa	3.031 in H2O	-25 °C	60 °C	Round	404 mm	cUL TUV UL	256.6 mm	400 VAC			Motorized Impellers	PWM Control Speed Sensor (Tach)	640 W	79 dB(A)	Ball	1850 RPM		23 lbs	10.4 kg	Terminal Block
Delta Electronics GTB040FUC20R N1	277 VAC	200 VAC	Aluminum	Aluminum	3.1 A	1857 CFM	52 m³/min	IP54 - Dust Protected Water Resistant	562.9 Pa	2.26 in H2O	-25 °C	60 °C	Round	404 mm	cUL TUV UL	203 mm	230 VAC	16 lbs	7.3 kg	Motorized Impellers	PWM Control	244 W	74 dB(A)	Ball	1600 RPM
Delta Electronics GTB040PUD26R N1	480 VAC	380 VAC	Aluminum	Aluminum	1.75 A	3532 CFM	98.9 m³/min	IP54 - Dust Protected Water Resistant			-25 °C	60 °C	Round	404 mm	cUL TUV UL		400 VAC	26 lbs	11.8 kg	Motorized Impellers	PWM Control Speed Sensor (Tach)	640 W	79 dB(A)	Ball	1850 RPM	227.3 mm			Terminal Block
Delta Electronics GTB040FUC23R	277 VAC	200 VAC	Aluminum	Aluminum	3.1 A	2068 CFM	57.9 m³/min	IP54 - Dust Protected Water Resistant			-25 °C	60 °C	Round	404 mm	cUL TUV UL		230 VAC	14 lbs	6.4 kg	Motorized Impellers	Electronic Commutation (EC)	250 W	76 dB(A)	Ball	1500 RPM	227.3 mm
Delta Electronics GTB040PUD27R	480 VAC	380 VAC	Aluminum	Aluminum	1.75 A	3102 CFM	86.86 m³/min	IP54 - Dust Protected Water Resistant			-25 °C	60 °C	Round	404 mm	cUL TUV UL	270 mm	400 VAC			Motorized Impellers	PWM Control Speed Sensor (Tach)	690 W	81 dB(A)	Ball	2140 RPM		23 lbs	10.4 kg	Terminal Block
Delta Electronics GTB040PUD27R N1	480 VAC	380 VAC	Aluminum	Aluminum	1.75 A	3102 CFM	86.86 m³/min	IP54 - Dust Protected Water Resistant			-25 °C	60 °C	Round	405 mm	cUL TUV UL	270.7 mm	400 VAC			Motorized Impellers	PWM Control Speed Sensor (Tach)	690 W	81 dB(A)	Ball	2140 RPM		25 lbs	11.3 kg	Terminal Block
