- Series

Catalog

PROCESS METER LCD PNL MOUNT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Termination Style	Display Type	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of Characters Per Row	Measuring Type	Type	Display Characters - Height	Measuring Range (Min)	Measuring Range (Max)	Output Type	Measuring Range (DC) Maximum	Measuring Range (DC) Minimum	Panel Cutout Diameter	Measuring Voltage Range (Minimum)	Measuring Voltage Range (Maximum)

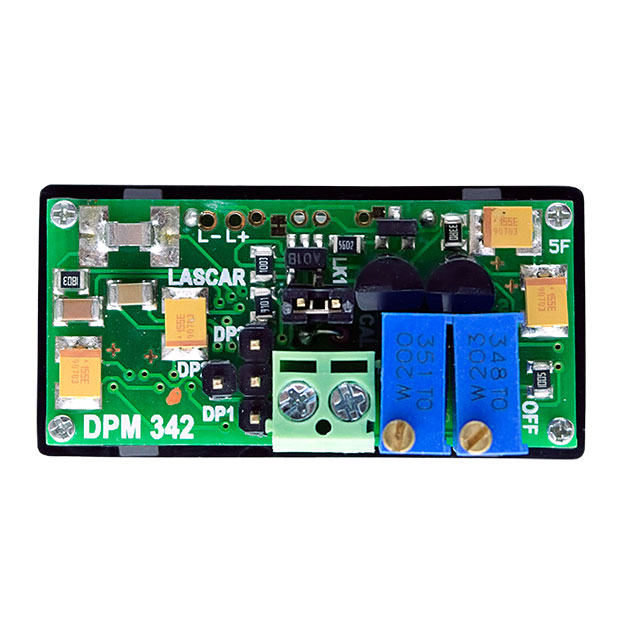

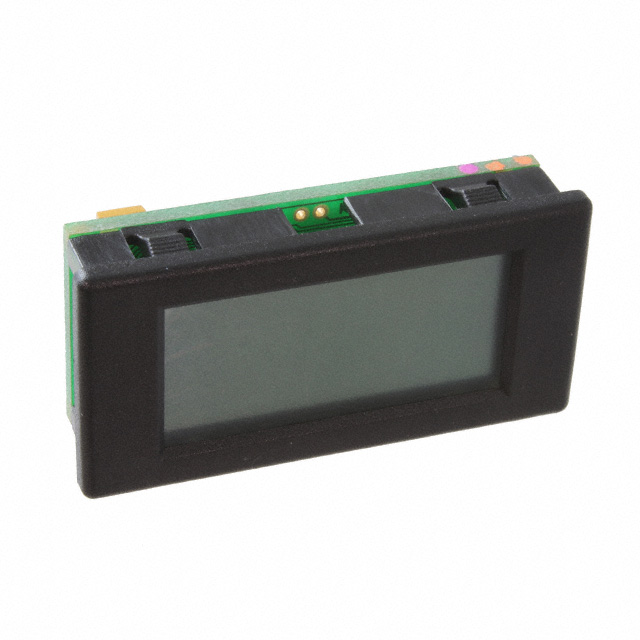

Lascar Electronics DPM 342	0 °C	50 °C	Panel Mount	Screw Terminal	Green Backlight LCD - Black Characters	Rectangular	38 mm	18 mm	5 V	6 V	3.5 characters	Current	Ammeter	0.433 in	0.004 mA	0.02 mA

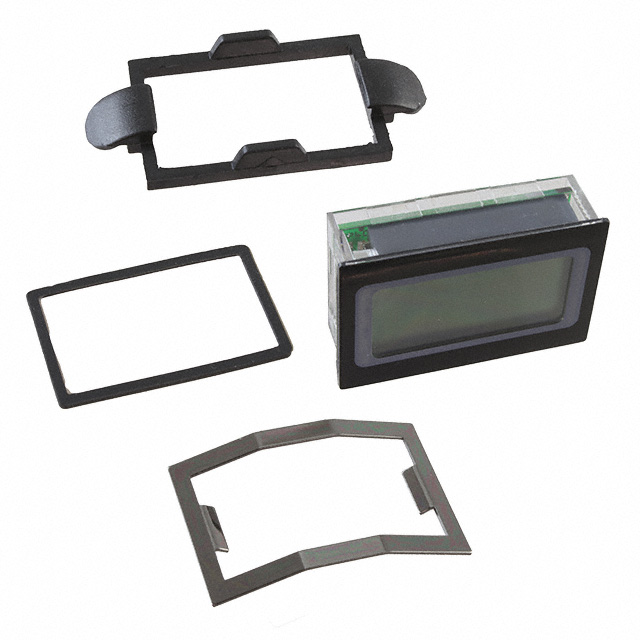

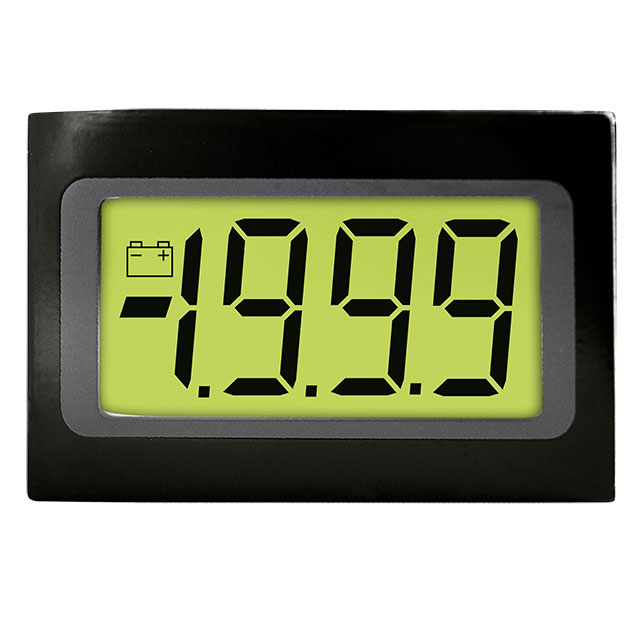

Lascar Electronics SP 400	0 °C	50 °C	Panel Mount	PC Pin	Green Backlight LCD - Black Characters	Rectangular	34 mm	21.3 mm	3 V	7.5 V	3.5 characters	Voltage	Voltmeter	0.384 in			Reference	0.2 V	-0.2 V

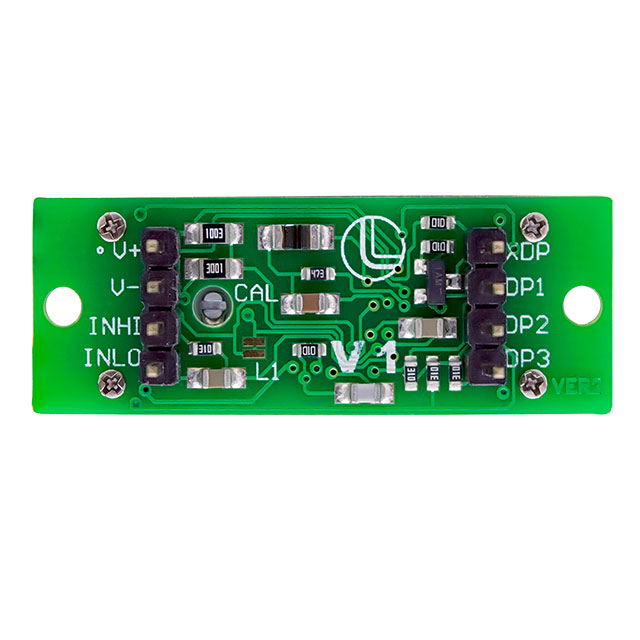

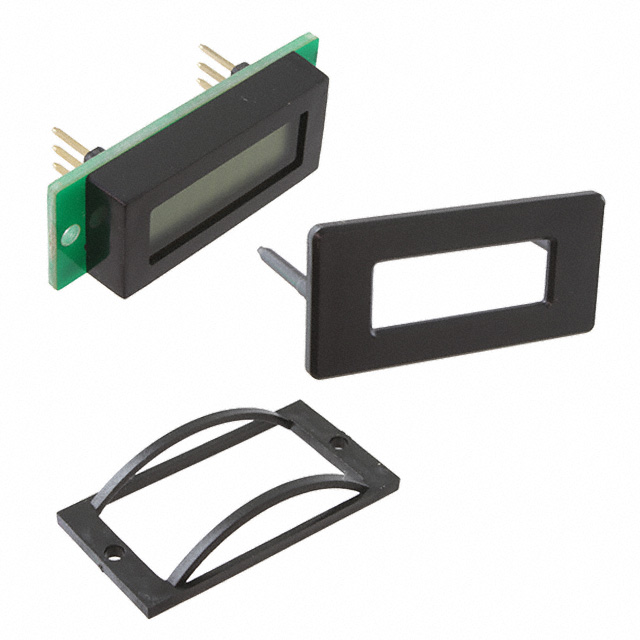

Lascar Electronics V 1	0 °C	50 °C	Panel Mount	PC Pin	LCD - Black Characters	Rectangular	31 mm	15 mm	7 V	12 V	3.5 characters	Voltage	Voltmeter	0.25 in			Reference	0.2 V	-0.2 V

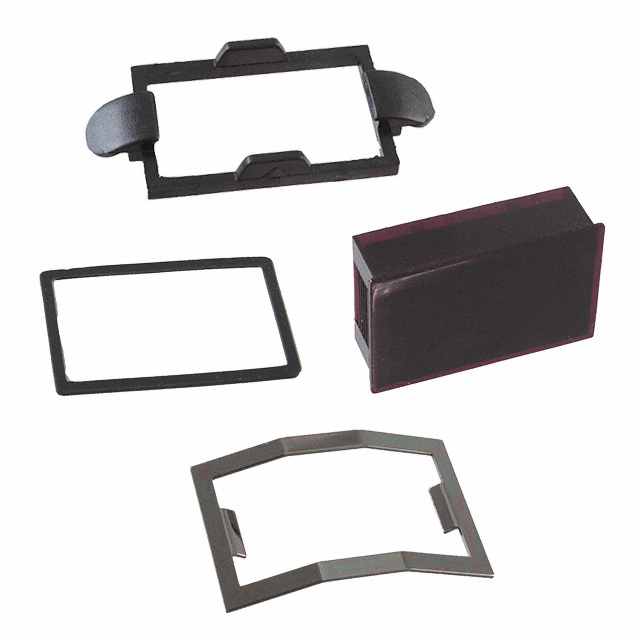

Lascar Electronics SP 300	0 °C	50 °C	Panel Mount	PC Pin	Backlight LCD - Red Characters	Rectangular	34 mm	21.3 mm	4.75 V	5.25 V	3.5 characters	Voltage	Voltmeter	0.37 in				0.2 V	-0.2 V

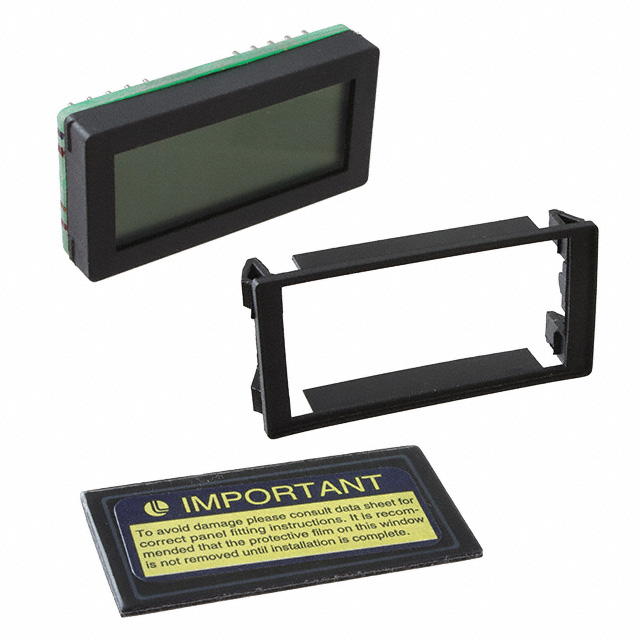

Lascar Electronics DPM 400	0 °C	50 °C	Panel Mount	PC Pin	LCD - Black Characters	Rectangular	45 mm	22 mm	7.5 V	14 V	3.5 characters	Voltage	Voltmeter	0.4 in				0.2 V	-0.2 V

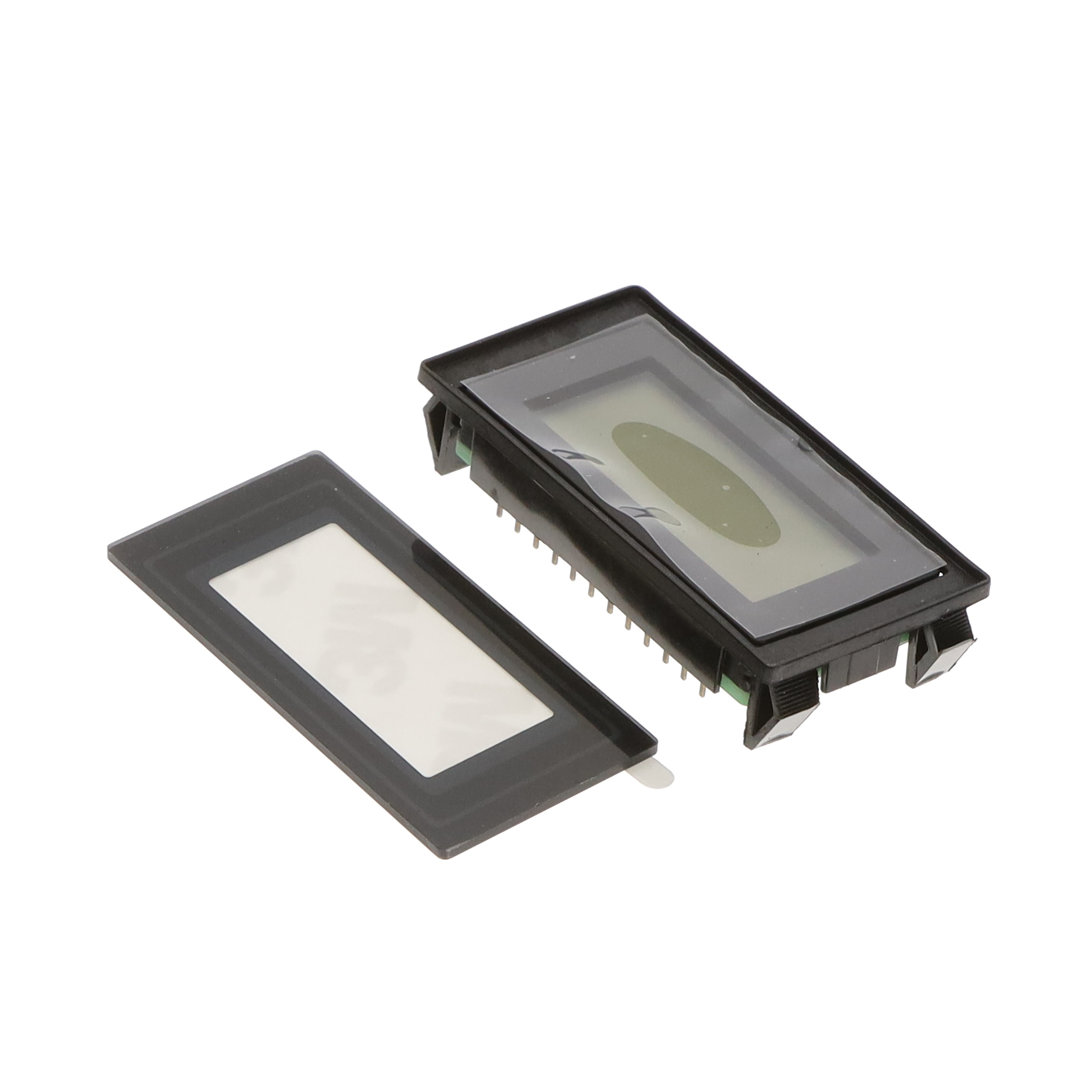

Lascar Electronics DPM 125	0 °C	50 °C	Panel Mount - Bezel Window	PC Pin	LCD - Black Characters	Rectangular	45 mm	22.2 mm	7.5 V	14 V	3.5 characters	Voltage	Voltmeter	0.5 in			Reference	0.2 V	-0.2 V

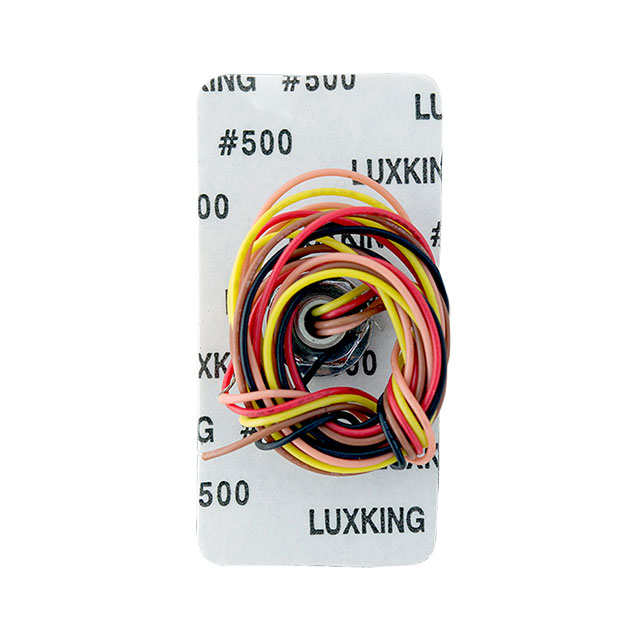

Lascar Electronics EMT 1900	-10 °C	50 °C	Panel Mount - Surface	Wire Leads	LCD - Black Characters	Circular			4 V	28 V	3.5 characters	Thermister	Temperature Meter	0.5 in	50 °C	220 °C				5.5 mm

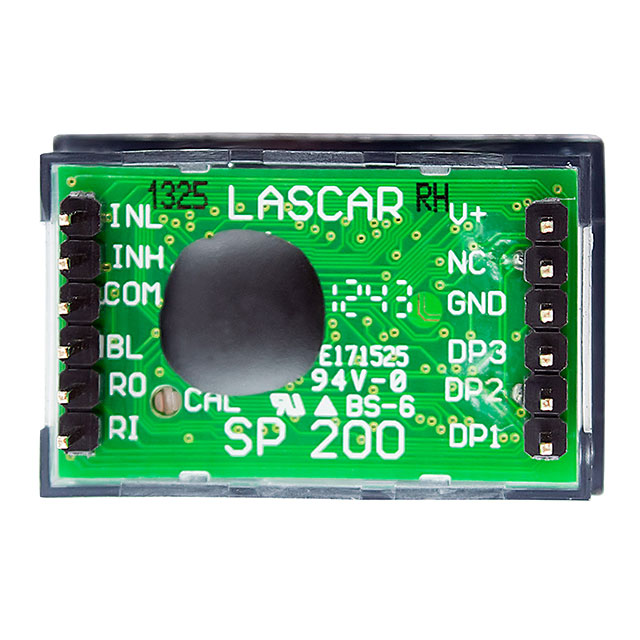

Lascar Electronics SP 200	0 °C	50 °C	Panel Mount	PC Pin	Green Backlight LCD - Black Characters	Rectangular	34 mm	21.3 mm	3.5 V	5.25 V	3.5 characters	Voltage	Voltmeter	0.384 in				0.2 V	-0.2 V

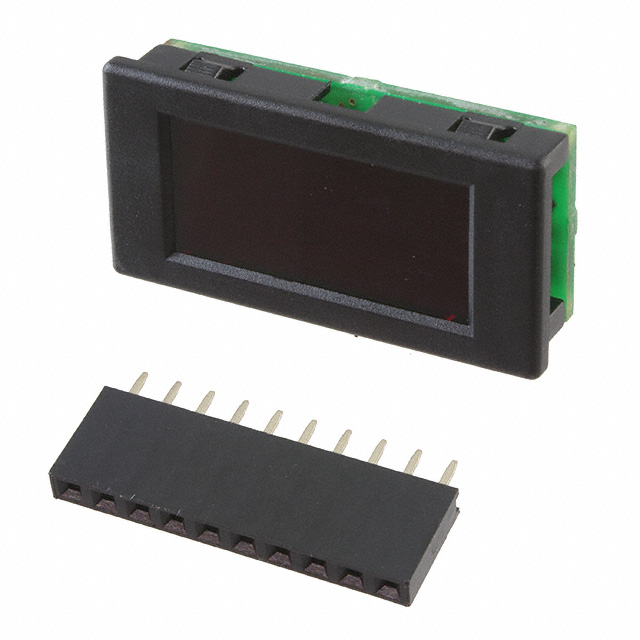

Lascar Electronics DPM 340	0 °C	50 °C	Panel Mount	PC Pin	LED - Red Characters	Rectangular	38 mm	18 mm	4.75 V	5.25 V	3.5 characters	Voltage	Voltmeter	0.315 in				0.2 V	-0.2 V

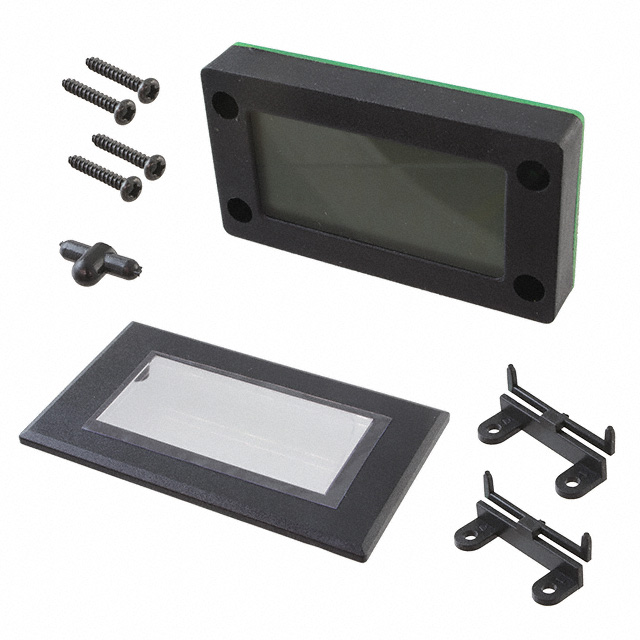

Lascar Electronics DPM 970	0 °C	50 °C	Panel Mount	Screw Terminal	Green Backlight LCD - Black Characters	Rectangular	72 mm	40 mm	7.5 V	14 V	3.5 characters	Voltage	Voltmeter	0.748 in							0 V	500 VAC
