CH-V09-525 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Technology	Operating Mode	Ingress Protection	Port Location	Sound Pressure Level (SPL)	Driver Circuitry	Approval Agency	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Input Type	Current - Supply [Min] [x]	Current - Supply [Max] [x]	Termination	Termination	Termination	Current - Supply [Min]	Current - Supply [Max]	Size / Dimension [diameter]
Floyd Bell Inc CH-V09-525-S(F)	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	Piezo	Chime	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC	5 mA	25 mA	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm

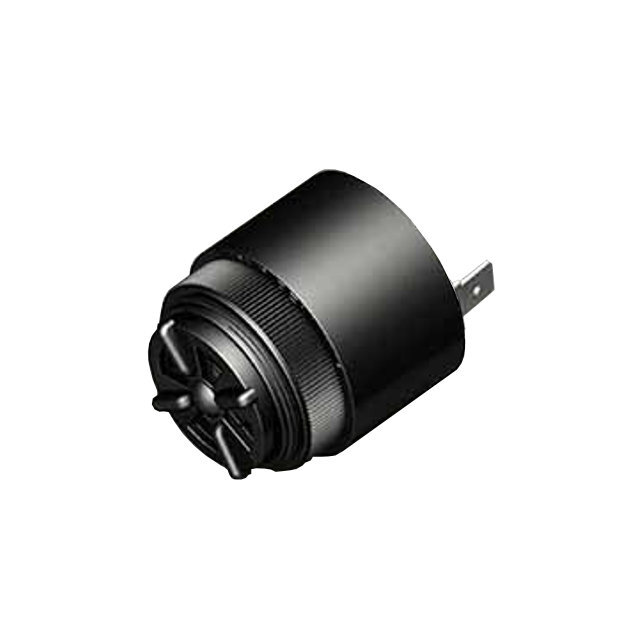

Floyd Bell Inc CH-V09-525-QHS	2.1 kHz		1.409 in	5 VDC	25 VDC	Piezo	Chime Single Shot	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC			0.25 "	Quick Connect Tab	6.35 mm	10 mA	45 mA	35.8 mm
Floyd Bell Inc CH-V09-525-S(S)	2.1 kHz		1.409 in	5 VDC	25 VDC	Piezo	Chime Single Shot	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC			0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	10 mA	45 mA	35.8 mm
Floyd Bell Inc CH-V09-525-Q(F)	2.9 kHz		1.409 in	5 VDC	25 VDC	Piezo	Chime	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC	5 mA	25 mA	0.25 "	Quick Connect Tab	6.35 mm			35.8 mm
Floyd Bell Inc CH-V09-525-Q(S)	2.1 kHz		1.409 in	5 VDC	25 VDC	Piezo	Chime Single Shot	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC			0.25 "	Quick Connect Tab	6.35 mm	10 mA	45 mA	35.8 mm
Floyd Bell Inc CH-V09-525-S(M)	2.9 kHz		1.409 in	5 VDC	25 VDC	Piezo	Chime	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC	5 mA	25 mA	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm			35.8 mm

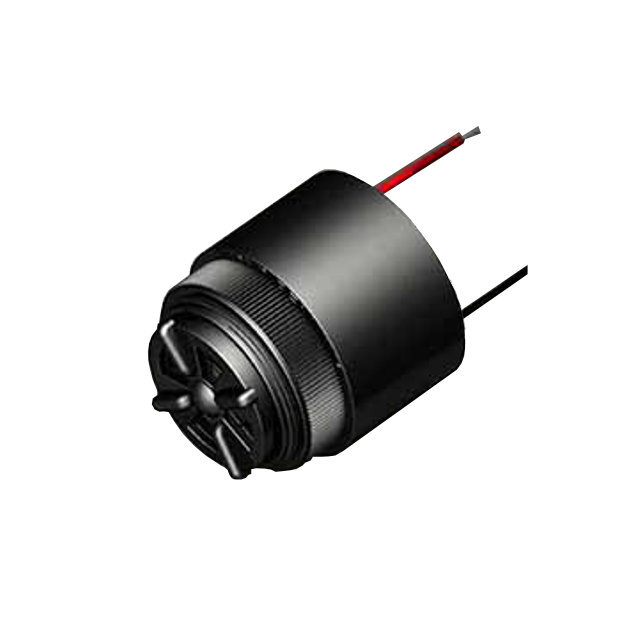

Floyd Bell Inc CH-V09-525-W(M)	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	Piezo	Chime	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC	5 mA	25 mA		Wire Leads
Floyd Bell Inc CH-V09-525-W(F)	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	Piezo	Chime	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC	5 mA	25 mA		Wire Leads
Floyd Bell Inc CH-V09-525-Q(M)	2.9 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	Piezo	Chime	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC	5 mA	25 mA	0.25 "	Quick Connect Tab	6.35 mm
Floyd Bell Inc CH-V09-525-W(S)	2.1 kHz	1.41 in	35.81 mm	5 VDC	25 VDC	Piezo	Chime Single Shot	IP68 - Dust Tight Waterproof	Top	93 dB	Indicator Internally Driven	UL UR	Panel Mount	1.48 in	37.59 mm	DC				Wire Leads		10 mA	45 mA
