TAS5780M Series

20-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier

Catalog

20-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier

Part	Mounting Type	Output Type	Package / Case	Package / Case	Package / Case [custom]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load	Features

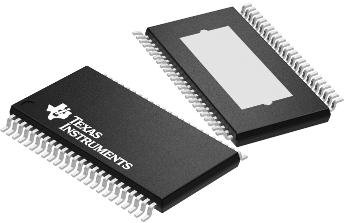

Texas Instruments TAS5780MDCA	Surface Mount	2-Channel (Stereo)	48-PowerTFSOP	0.24 in	6.1 mm	48-HTSSOP	-25 °C	85 °C	Class D	4.5 V	26.4 V	2 channels 40 W	Short Circuit Protection
Texas Instruments TAS5780MDCAR	Surface Mount	2-Channel (Stereo)	48-PowerTFSOP	0.24 in	6.1 mm	48-HTSSOP	-25 °C	85 °C	Class D	4.5 V	26.4 V	2 channels 40 W	Short Circuit Protection

Catalog

20-W stereo, 40-W mono, 4.5- to 26.4-V supply, digital input Class-D audio amplifier

Key Features

• Flexible Audio I/O ConfigurationSupports I2S, TDM, LJ, RJ Digital InputSample Rate SupportStereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation1SPW Amplifier ModulationSupports 3-Wire Digital Audio Interface (No MCLK required)High-Performance Closed-Loop Architecture (PVDD = 12 V, RSPK= 8 Ω, SPK_GAIN = 20 dB)Idle Channel Noise = 62 µVrms (A-Wtd)THD+N = 0.2% (at 1 W, 1 kHz)SNR = 103dB A-Wtd (Ref. to THD+N = 1%)Fixed-Function Processing Features12 BiQuadsInternal Bank Switch for Fast Change of the 12 BiQuads2-Band Advanced DRC + AGLDPEQSRC supports 32, 44.1, 48, 88.2, 96 kHz96-kHz Processor SamplingCommunication FeaturesSoftware Mode Control via I2C PortTwo Address Select Pins – Up to 4 DevicesRobustness and Reliability FeaturesClock Error and Short-Circuit ProtectionOvertemperature and Overcurrent ProtectionFlexible Audio I/O ConfigurationSupports I2S, TDM, LJ, RJ Digital InputSample Rate SupportStereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation1SPW Amplifier ModulationSupports 3-Wire Digital Audio Interface (No MCLK required)High-Performance Closed-Loop Architecture (PVDD = 12 V, RSPK= 8 Ω, SPK_GAIN = 20 dB)Idle Channel Noise = 62 µVrms (A-Wtd)THD+N = 0.2% (at 1 W, 1 kHz)SNR = 103dB A-Wtd (Ref. to THD+N = 1%)Fixed-Function Processing Features12 BiQuadsInternal Bank Switch for Fast Change of the 12 BiQuads2-Band Advanced DRC + AGLDPEQSRC supports 32, 44.1, 48, 88.2, 96 kHz96-kHz Processor SamplingCommunication FeaturesSoftware Mode Control via I2C PortTwo Address Select Pins – Up to 4 DevicesRobustness and Reliability FeaturesClock Error and Short-Circuit ProtectionOvertemperature and Overcurrent Protection

Description

The TAS5780M device is a high-performance, stereo closed-loop Class-D amplifier with integrated audio processor with 96-kHz architecture. To convert from digital to analog, the device uses a high performance DAC with Burr Brown™ audio technology. It requires only two power supplies: one DVDD for low-voltage circuitry and one PVDD for high-voltage circuitry. It is controlled by a software control port using standard I2C communication. An optimal mix of thermal performance and device cost is provided in the 90 mΩ rDS(on)of the output MOSFETs. Additionally, a thermally enhanced 48-Pin TSSOP provides excellent operation in the elevated ambient temperatures found in modern consumer electronic devices. The TAS5780M device is a high-performance, stereo closed-loop Class-D amplifier with integrated audio processor with 96-kHz architecture. To convert from digital to analog, the device uses a high performance DAC with Burr Brown™ audio technology. It requires only two power supplies: one DVDD for low-voltage circuitry and one PVDD for high-voltage circuitry. It is controlled by a software control port using standard I2C communication. An optimal mix of thermal performance and device cost is provided in the 90 mΩ rDS(on)of the output MOSFETs. Additionally, a thermally enhanced 48-Pin TSSOP provides excellent operation in the elevated ambient temperatures found in modern consumer electronic devices.
