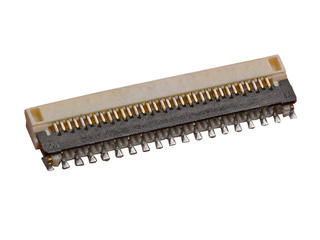

503566 Series

Manufacturer: Molex

Catalog

0.30MM PITCH EASY-ON FPC CONNECTOR, RIGHT-ANGLE, BOTTOM CONTACT, 0.95MM HEIGHT, 11 CIRCUITS, GOLD OVER NICKEL PLATING

Part	Mating Cycles	Current Rating (Amps)	Housing Color	Actuator Color	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Mounting Type	Connector/Contact Type	Features	Pitch	Pitch	Number of Positions	Voltage Rating	Cable End Type	Material Flammability Rating	Termination	Height Above Board	Height Above Board	FFC, FCB Thickness [custom]	Contact Material	Contact Finish	Flat Flex Type	Actuator Material

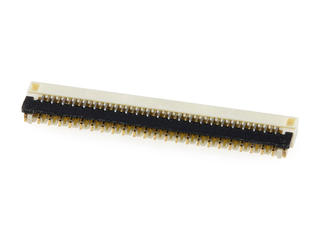

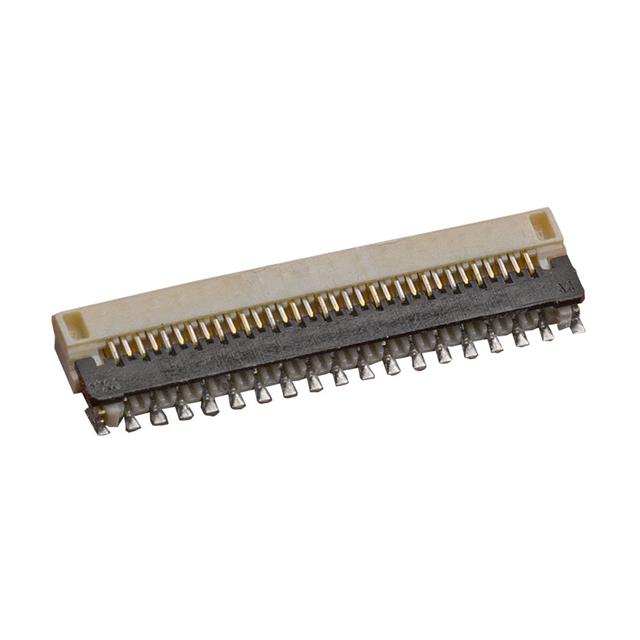

Molex 5035661102	10	0.2 A	White	Black	Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	11	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)

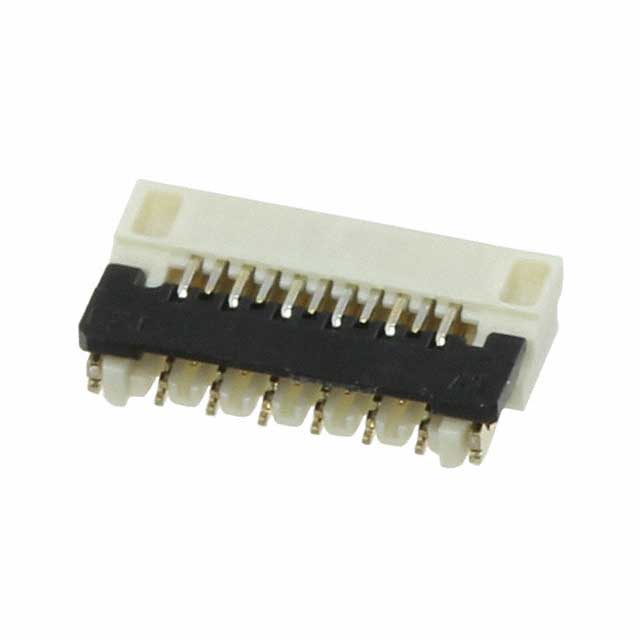

Molex 5035661100	10	0.2 A	White	Black	Flip Lock	-40 C	85 °C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	11	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)

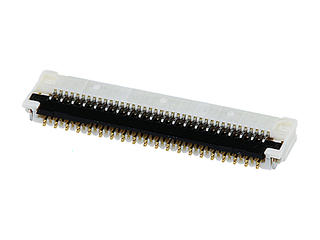

Molex 5035663902		0.2 A	White	Black	Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	39	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)
Molex 5035661702		0.2 A	White	Black	Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm		50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)
Molex 5035661302		0.2 A	White	Black	Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	13	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)

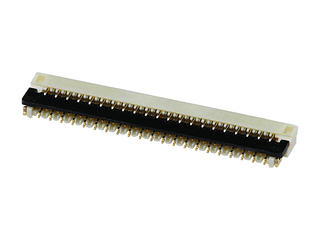

Molex 5035664102		0.2 A	White	Black	Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	41	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)
Molex 5035664302	10	0.2 A	White	Black	Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	43	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)
Molex 5035662102					Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	21	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)
Molex 5035664502					Flip Lock	-40 C	105 ░C	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	45	50 V	Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)

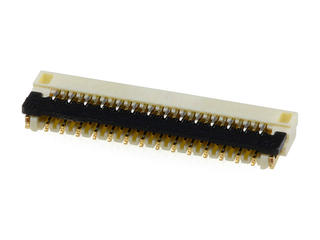

Molex 5035662702			White	Black	Flip Lock			Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Contacts Bottom	Solder Retention	0.012 in	0.3 mm	27		Tabbed	UL94 HB UL94 V-0	Solder	0.037 in	0.95 mm	0.2 mm	Phosphor Bronze	Gold	FPC	Glass Filled Nylon Polyamide (PA)
