302-R40 Series

Catalog

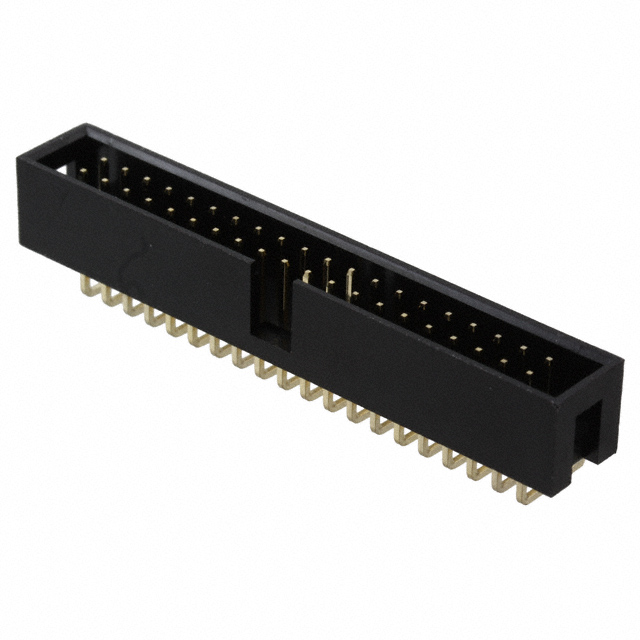

CONN HEADER R/A 40POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Positions	Contact Material	Number of Rows [custom]	Mounting Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Termination	Fastening Type	Contact Finish Thickness - Mating	Contact Type	Features	Contact Finish - Post	Style	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]
On Shore Technology Inc. 302-R401	1.25 µin	0.032 µm	Black	40	Brass	2	Right Angle Through Hole	Gold	0.1 "	2.54 mm	Header	Polyester Glass Filled	Shrouded - 4 Wall	-40 C	105 ░C	3 A	0.358 "	9.1 mm	UL94 V-0	Square	Solder	Push-Pull	Flash	Male Pin	Keying Slot	Gold	Board to Cable/Wire	0.122 in	3.1 mm	250 V	All	0.1 in	2.54 mm
