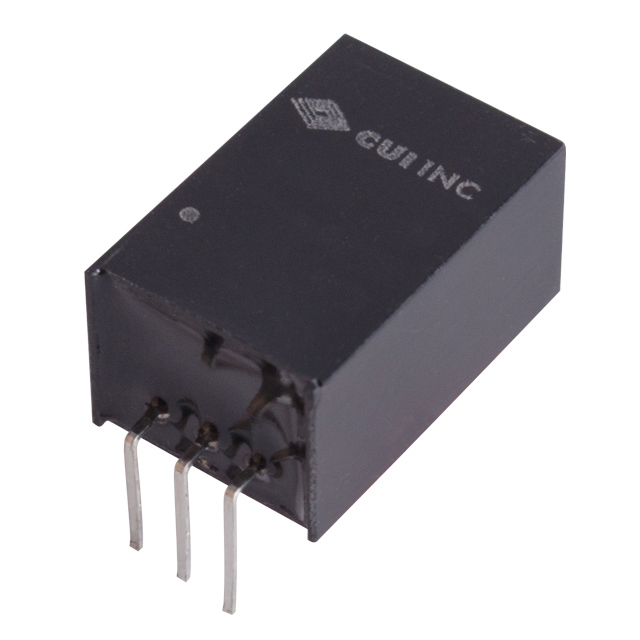

V7809 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 9V 4.5W

Part	Features	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Power (Watts)	Type	Voltage - Input (Max) [Max]
CUI Inc. V7809W-500	OTP SCP	92 %	9 mm	0.69 in	0.35 in	0.45 "	11.5 mm	17.5 mm	3-SIP Module	9 V	500 mA	Through Hole	85 °C	-40 C	ITE (Commercial)	1	14 V	4.5 W	Linear Regulator Replacement	72 V
CUI Inc. V7809W-500R	OTP SCP	92 %	11.5 mm	0.35 in	0.45 in	0.69 in	17.5 mm	9 mm	3-SIP Module	9 V	500 mA	Right Angle Through Hole	85 °C	-40 C	ITE (Commercial)	1	14 V	4.5 W	Linear Regulator Replacement	72 V
CUI Inc. V7809-500	OTP SCP	95 %	7.6 mm	0.4 "	0.3 "	0.45 "	11.4 mm	10.2 mm	3-SIP Module	9 V	500 mA	Through Hole	85 °C	-40 C	ITE (Commercial)	1	11 V	4.5 W	Linear Regulator Replacement	32 V
CUI Inc. V7809-1000R	OTP SCP	95 %	11.5 mm	0.35 in	0.45 in	0.69 in	17.5 mm	9 mm	3-SIP Module	9 V	1 A	Right Angle Through Hole	85 °C	-40 C	ITE (Commercial)	1	12 V	9 W	Linear Regulator Replacement	32 V
