2302785 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

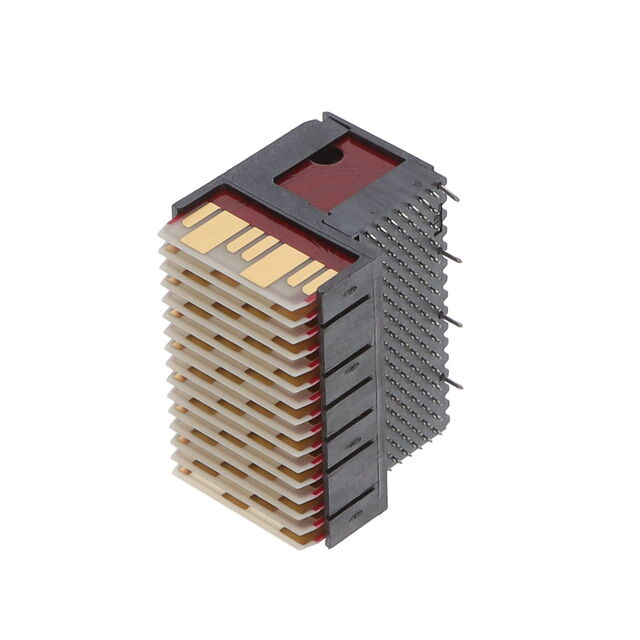

RA PLUG ASSY,7ROW,CENTER,VPX,MG
| Part | Voltage Rating | Features | Termination | Number of Columns | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Connector Type | Color | Number of Rows | Number of Positions | Connector Style | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Connector Usage | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 166 VAC/DC | Board Guide | Press-Fit | 16 | -55 °C | 125 °C | Gold | Plug Male Blades | Black | 7 | 112 | Center VITA 46 | UL94 V-0 | 50 µin | 1.27 µm | Daughtercard | 32 | 40 | 8 | 0.071 in | 1.8 mm | Board Edge Right Angle Through Hole | All |
