H3153 Series
Manufacturer: Harwin Inc.
Beta
⌘K

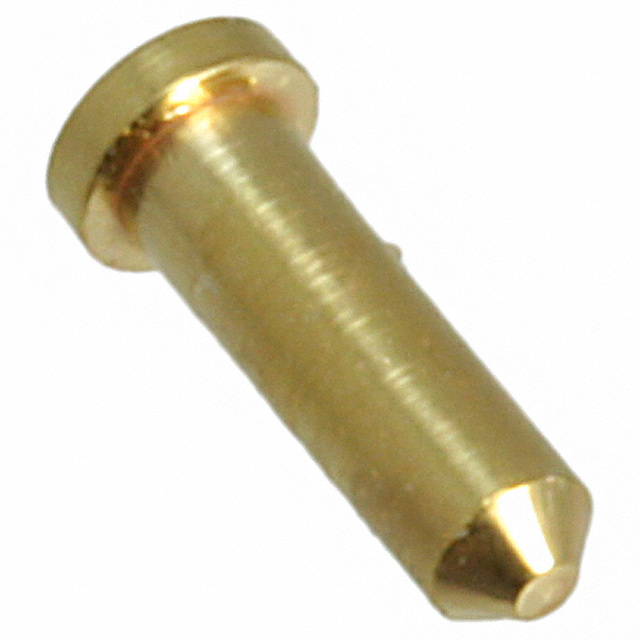

CONN PIN RCPT .018-.020 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Tail Type | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Socket Depth | Socket Depth | Contact Finish | Contact Material | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -55 C | 125 °C | 0.46 mm | 0.51 mm | 0.02 in | 0.018 in | 1.09 mm | 0.043 in | 0.99 mm | 0.039 in | No Tail | Solder | 0.057 in | 1.45 mm | 0.124 in | 3.15 mm | Gold | Beryllium Copper | 0.142 in | 3.61 mm |
