MOC3041M Series

Triac Driver Output Optocoupler, 6-Pin DIP 400V Zero Crossing

Catalog

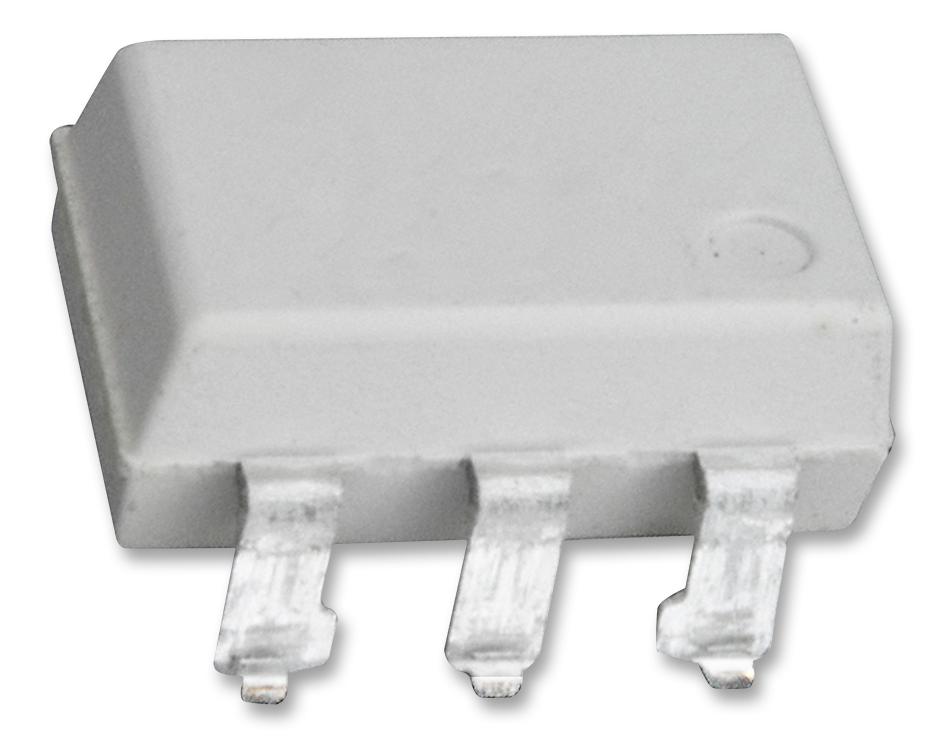

Triac Driver Output Optocoupler, 6-Pin DIP 400V Zero Crossing

Part	Voltage - Isolation	Mounting Type	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Number of Channels	Voltage - Off State	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Current - Hold (Ih)	Static dV/dt (Min) [Min]	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Package / Case	Package / Case
ON Semiconductor MOC3041TM	4170 Vrms	Through Hole	15 mA	1.25 V	1	400 V	UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-DIP	60 mA	6-DIP	10.16 mm	10.16 mm
ON Semiconductor MOC3043SVM	4170 Vrms	Surface Mount	5 mA	1.25 V	1	400 V	IEC/EN/DIN UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3042FR2M	7500 Vpk	Surface Mount	10 mA		1	400 V				Triac	400 µA		6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3041VM	4170 Vrms	Through Hole	15 mA	1.25 V	1	400 V	IEC/EN/DIN UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-DIP	60 mA	6-DIP		7.62 mm	0.3 in
ON Semiconductor MOC3041SVM	4170 Vrms	Surface Mount	15 mA	1.25 V	1	400 V	IEC/EN/DIN UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3042SM	4170 Vrms	Surface Mount	10 mA	1.25 V	1	400 V	UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3041SR2VM	4170 Vrms	Surface Mount	15 mA	1.25 V	1	400 V	IEC/EN/DIN UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3041FR2VM	7500 Vpk	Surface Mount	15 mA		1	400 V				Triac	400 µA		6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3042FVM	7500 Vpk	Surface Mount	10 mA		1	400 V				Triac	400 µA		6-SMD	60 mA	6-SMD Gull Wing
ON Semiconductor MOC3041TVM	4170 Vrms	Through Hole	15 mA	1.25 V	1	400 V	IEC/EN/DIN UL	85 °C	-40 °C	Triac	400 µA	1 kV/µs	6-DIP	60 mA	6-DIP	10.16 mm	10.16 mm

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 400V Zero Crossing

Key Features

• Simplifies Logic Control of 115 VAC power

• Zero Voltage Crossing

• dv/dt of 2000 V/µs Typical, 1000 V/µs Guaranteed

• Peak Blocking Voltage– 250 V, MOC303XM– 400 V, MOC304XM

• Safety and Regulatory Approvals– UL1577, 4,170 VACRMS for 1 Minute– DIN EN/IEC60747-5-5

Description

The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.They are designed for use with a triac in the interface of logic systems to equipment powered from 115VAClines such as teletypewriters, CTRs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc.
