ALCOSWITCH AVP22 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH PUSHBUTTON SPST-NO 1A 24V

Part	Color - Actuator/Cap	Actuator Marking	Voltage Rating - DC	Circuit	Mounting Type	Switch Function	Voltage Rating - AC	Type	Current Rating (Amps)	Actuator Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Mechanical Life	Electrical Life	Illumination Type, Color

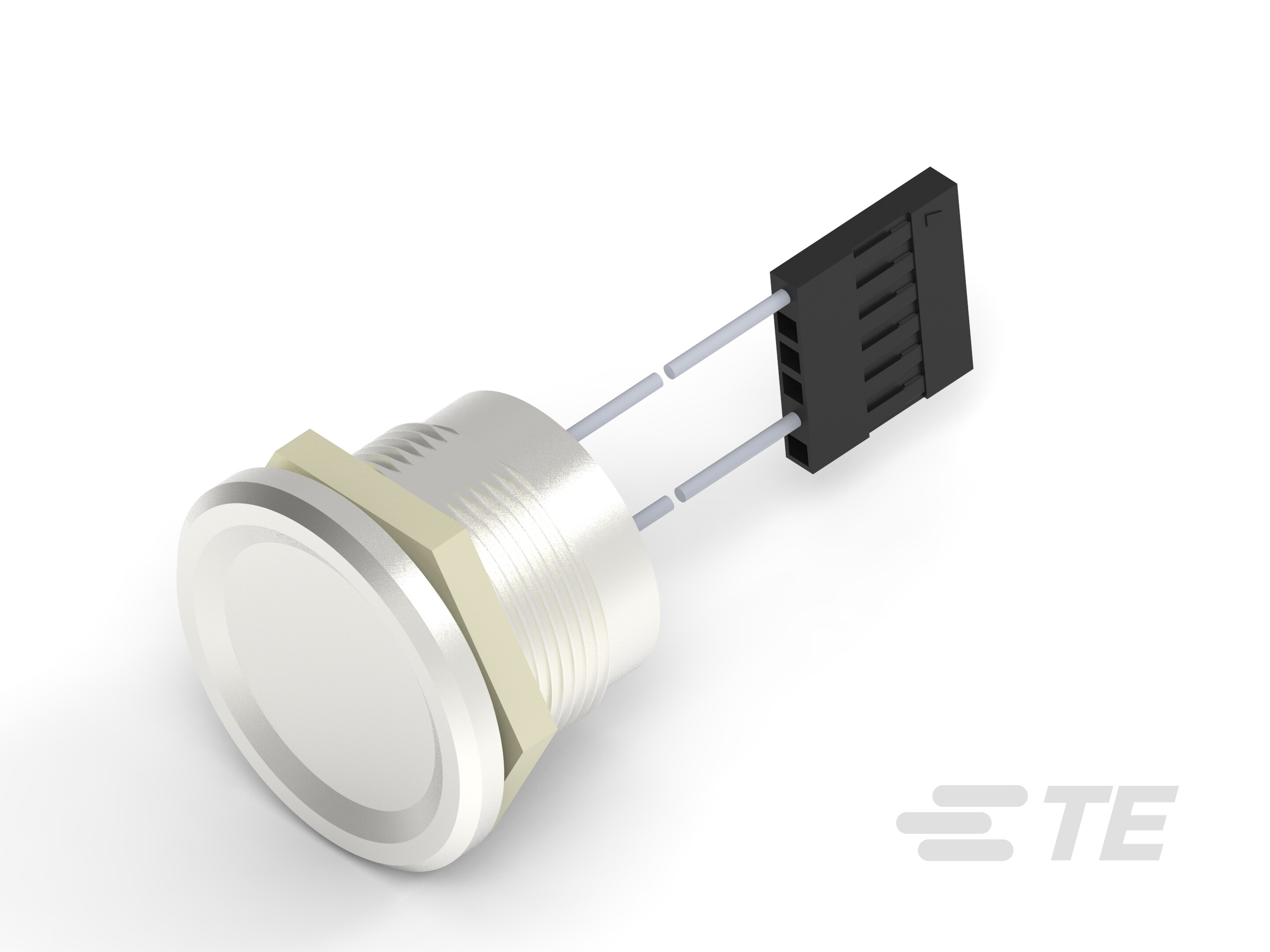

TE Connectivity AMP Connectors AVP22MS16C000T5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Piezo Anti-Vandal	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm

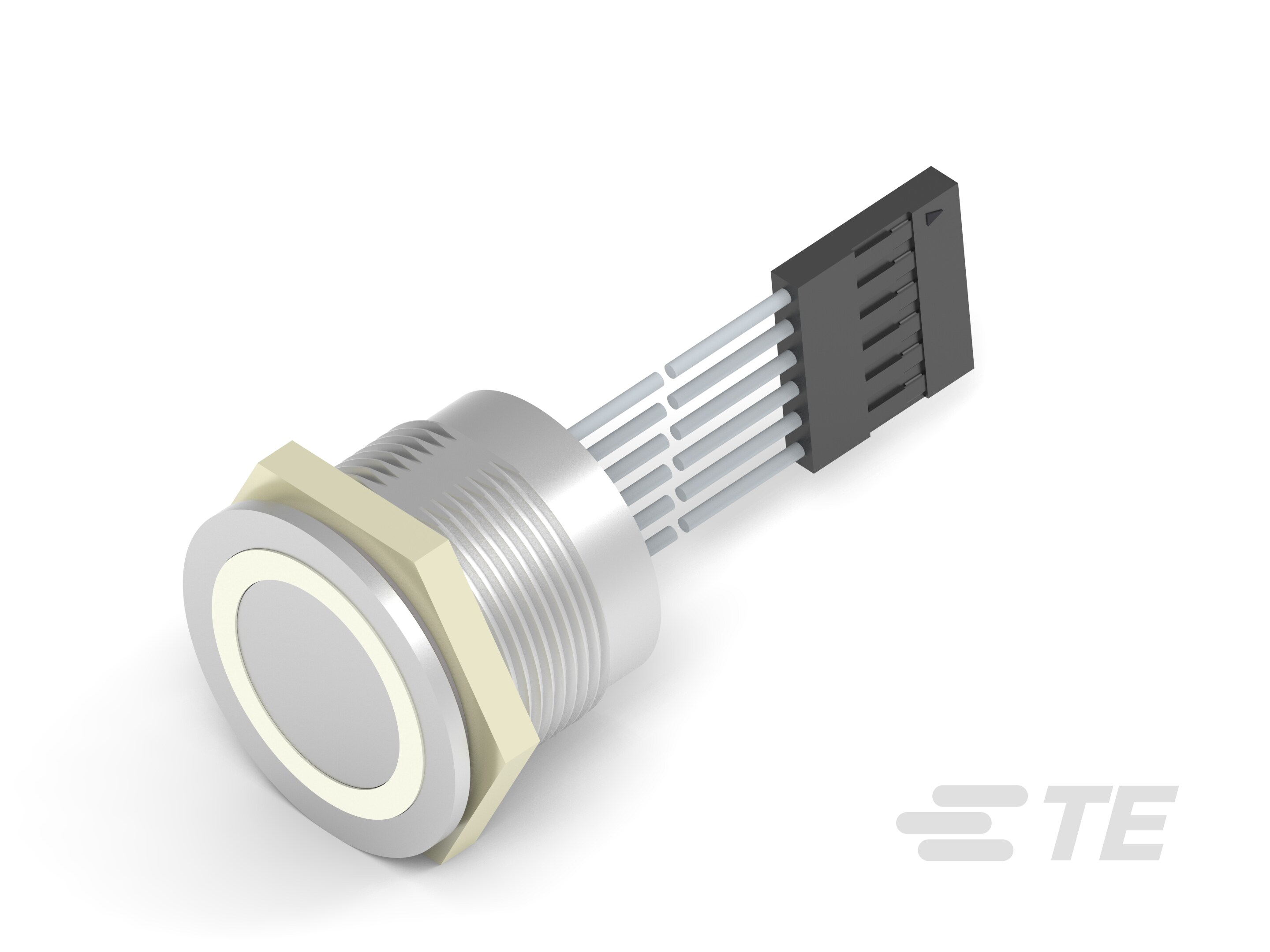

TE Connectivity AMP Connectors AVP22MAIBFE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm	50000000 Cycles	50 000 000	Blue Green LED Red
TE Connectivity AMP Connectors AVP22MAIOFE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm			Blue Green LED Red
TE Connectivity AMP Connectors AVP22MS16FE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm			Blue Green LED Red

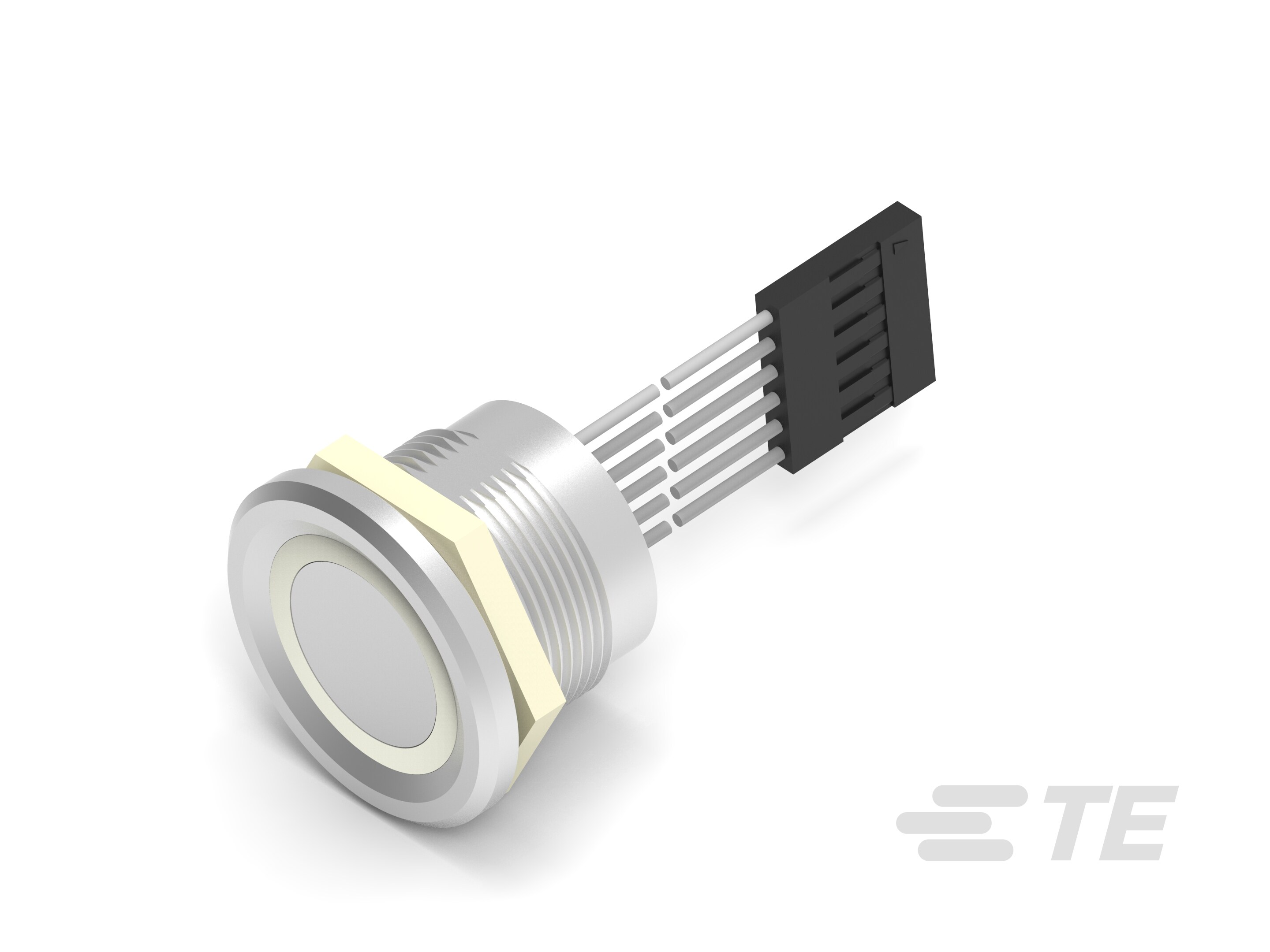

TE Connectivity AMP Connectors AVP22MS04CE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm	50000000 Cycles	50 000 000	Blue Green LED Red
TE Connectivity AMP Connectors AVP22MAIBC000T5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Piezo Anti-Vandal	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm
TE Connectivity AMP Connectors AVP22MS04FE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm			Blue Green LED Red

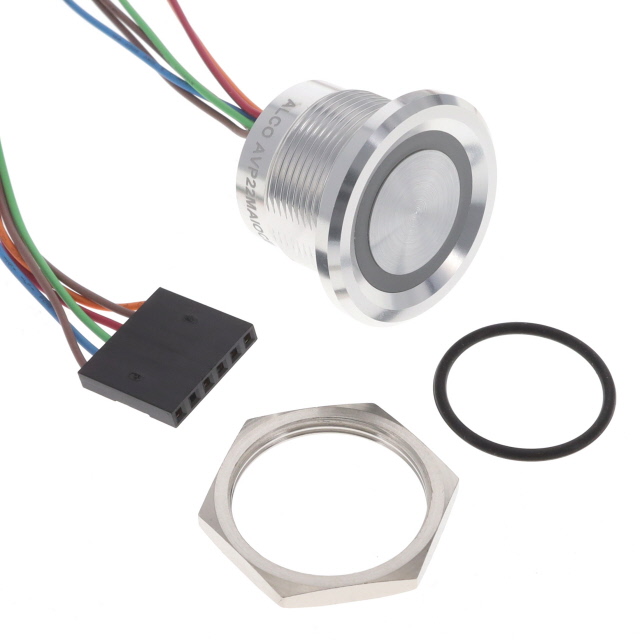

TE Connectivity AMP Connectors AVP22MAIOCE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm	50000000 Cycles	50 000 000	Blue Green LED Red
TE Connectivity AMP Connectors AVP22MS16CE0DT5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Anti-Vandal Illuminated Piezo	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm			Blue Green LED Red

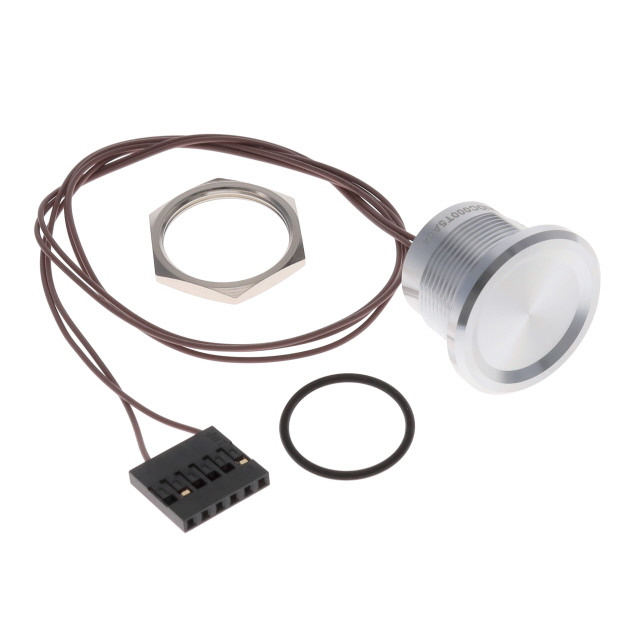

TE Connectivity AMP Connectors AVP22MAIOC000T5A04	Silver	No Marking	24 V	SPST-NO	Panel Mount Front	Off-Mom	24 V	Piezo Anti-Vandal	1 A	Button Flush Round	IP68 - Dust Tight Waterproof	22.2 mm	50000000 Cycles	50 000 000
