SFW16R Series

Catalog

CONN CIC TOP 16POS 1MM R/A

Part	Number of Positions	Pitch	Pitch	Flat Flex Type	Housing Material	Cable End Type	Locking Feature	Mounting Type	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness	Mating Cycles	Housing Color	Voltage Rating	Material Flammability Rating	Features	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFW16R-6STE1	16	1 mm	0.039 in	CIC	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder	0.3 mm
Amphenol ICC (FCI) SFW16R-1STAE1LF	16	1 mm	0.039 in	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Slide Lock	Right Angle Surface Mount	Contacts Bottom	0.106 in	2.7 mm	Solder	0.3 mm	20	Brown	100 V	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)	Phosphor Bronze	Gold	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled

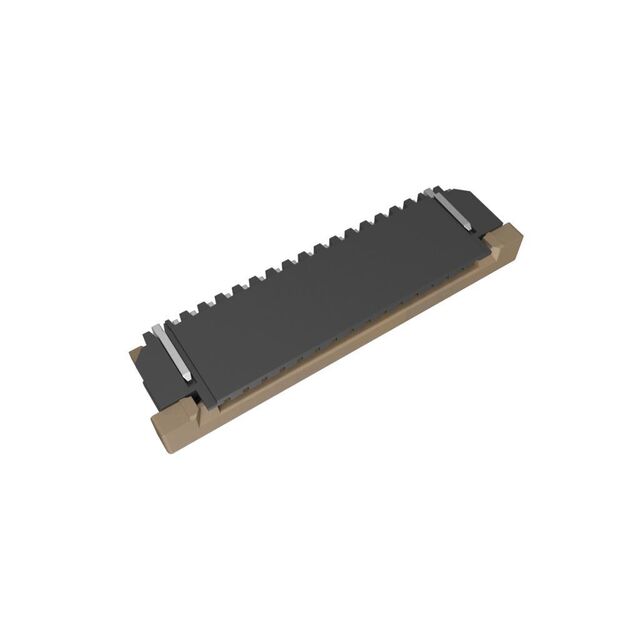

Amphenol ICC (FCI) SFW16R-4STE1LF	16	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Notched Tapered	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder		20	Black	100 V	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)	Phosphor Bronze	Tin	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	Brown	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW16R-2STGE1LF	16	1 mm	0.039 in	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder	0.33 mm	20	Brown	100 V	UL94 V-0		Phosphor Bronze	Gold	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	Black

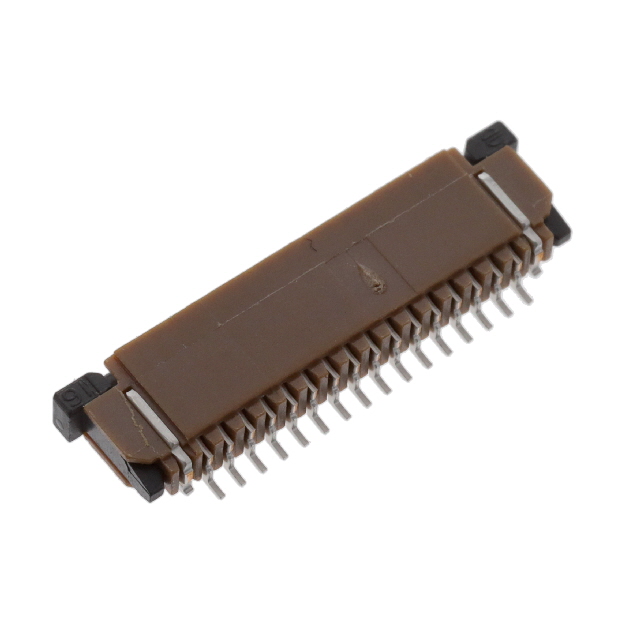

Amphenol ICC (FCI) SFW16R-2STE9LF	16	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder		20	Brown	100 V	UL94 V-0		Phosphor Bronze	Tin	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	Black	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW16R-2STAE5LF	16	1 mm	0.039 in	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder	0.33 mm		Brown		UL94 V-0		Phosphor Bronze	Gold			Polyphenylene Sulfide (PPS) Glass Filled	Black
Amphenol ICC (FCI) SFW16R-4STE5LF	16	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Notched	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder			Black	100 V	UL94 V-0		Phosphor Bronze	Tin	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	Brown	0.3 mm	0.33 mm

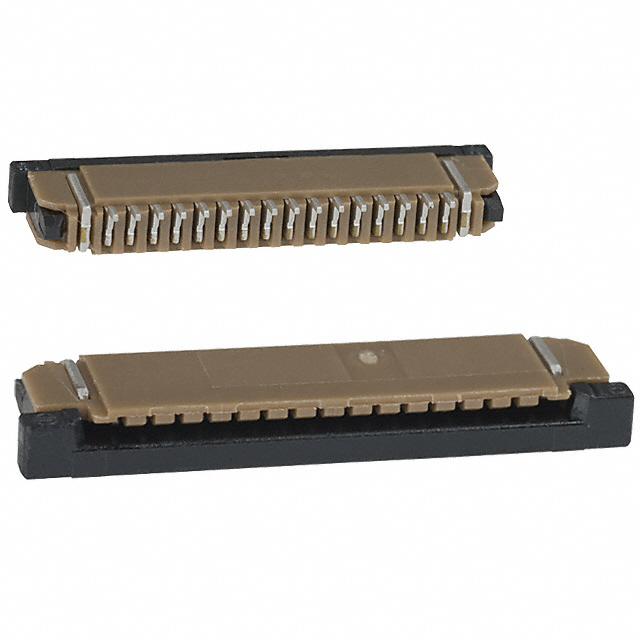

Amphenol ICC (FCI) SFW16R-2STE1	16	1 mm	0.039 in	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder			Brown		UL94 V-0		Phosphor Bronze	Tin Alloy			Polyphenylene Sulfide (PPS) Glass Filled	Black	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW16R-2STAE1LF	16	1 mm	0.039 in	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Slide Lock	Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder	0.3 mm	20	Brown	100 V	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)	Phosphor Bronze	Gold	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	Black
Amphenol ICC (FCI) SFW16R-4STZE5LF	16	1 mm	0.039 in			Straight		Right Angle Surface Mount	Contacts Top	0.106 in	2.7 mm	Solder	0.3 mm	20			UL94 V-0	Solder Retention Zero Insertion Force (ZIF)		Tin			Polyphenylene Sulfide (PPS) Glass Filled
