LHB-07 Series
Manufacturer: Adam Tech
Beta
⌘K

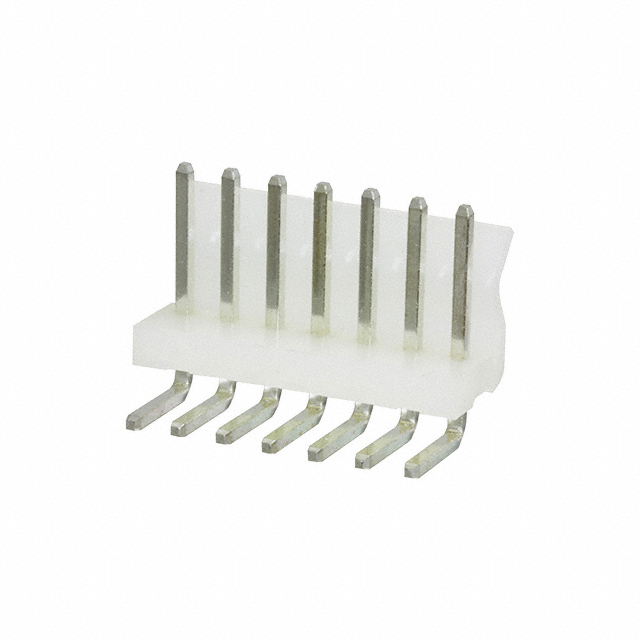

CONN HEADER R/A 7POS 3.96MM
| Part | Insulation Color | Contact Length - Mating | Contact Length - Mating | Number of Rows | Fastening Type | Voltage Rating | Contact Material | Connector Type | Number of Positions Loaded | Insulation Material | Contact Type | Shrouding | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Post | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post | Material Flammability Rating | Number of Positions | Style | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | White | 11.3 mm | 0.445 in | 1 | Friction Lock | 250 VAC | Brass | Header | All | Nylon 6/6 Polyamide (PA66) | Male Pin | Shrouded - 1 Wall | 3.96 mm | 0.156 in | Solder | Tin | Square | 85 °C | -25 °C | 0.134 " | 3.4 mm | UL94 V-2 | 7 | Board to Cable/Wire | Right Angle Through Hole | 5 A |
