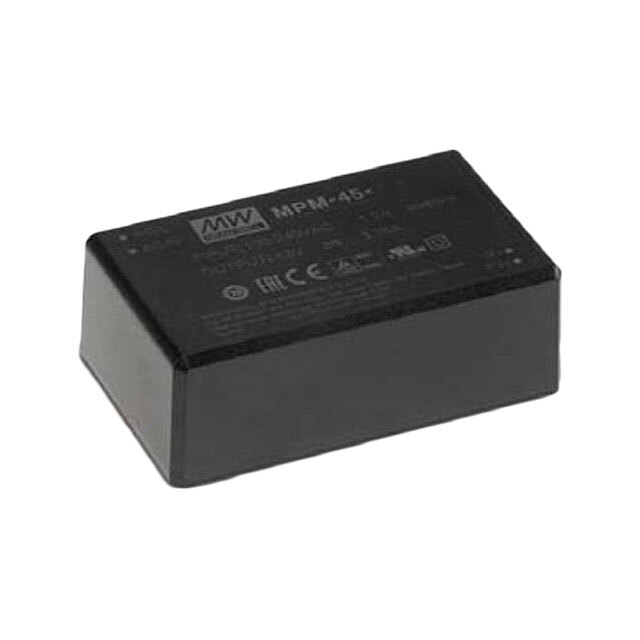

MPM-45 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 40W
| Part | Line Regulation | Load Regulation | Mounting Type | Type | Voltage - Output 1 | Applications | Efficiency | Current - Output (Max) [Max] | Power (Watts) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 0.5 % | ±1% | Through Hole | Enclosed | 5 V | Household Appliances Medical | 88 % | 8 A | 40 W | 4-DIP Module | 80 °C | -30 °C | 1.16 in | 3.43 " | 29.5 mm | 2.05 in | 52 mm | 87 mm | 1 | CB CE cURus EAC TUV | 80 VAC 113 VDC | 264 VAC 370 VDC |
