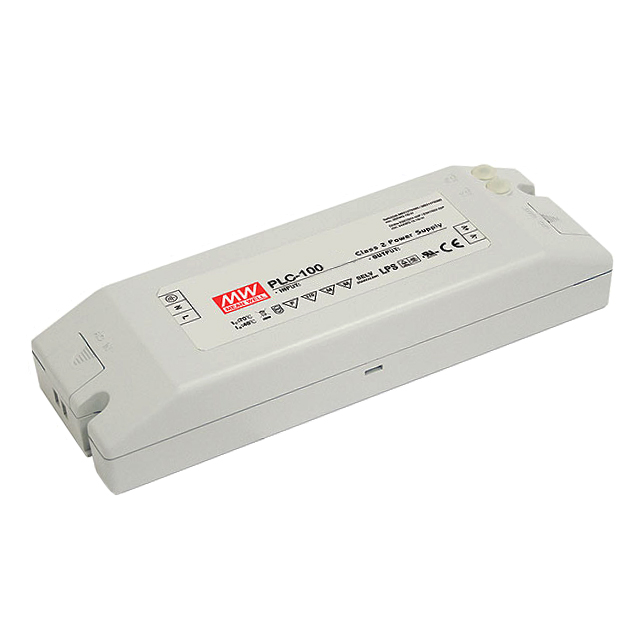

PLC-100 Series

Catalog

LED DRIVER CC/CV AC/DC 36V 2.65A

Part	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Type	Topology	Number of Outputs	Voltage - Output	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Isolation	Efficiency	Features	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)
MEAN WELL USA Inc. PLC-100-36	Chassis Mount	95 W	2.65 A	Constant Current Voltage	AC DC Converter	1	36 V	90 VAC	35 mm	200.5 mm	1.38 in	7.89 in	2.74 "	69.5 mm	CB CCC CE cURus PSE TUV	264 VAC	3750 VDC	88 %	OTP OVP SCP	Wire Leads	-30 ░C	50 °C
MEAN WELL USA Inc. PLC-100-27	Chassis Mount	96 W	3.55 A	Constant Current Voltage	AC DC Converter	1	27 V	90 VAC	35 mm	200.5 mm	1.38 in	7.89 in	2.74 "	69.5 mm	CB CCC CE cURus PSE TUV	264 VAC	3750 VDC	88 %	OTP OVP SCP	Wire Leads	-30 ░C	50 °C
MEAN WELL USA Inc. PLC-100-12	Chassis Mount	60 W		Constant Current Voltage	AC DC Converter	1	12 V	90 VAC	35 mm	200.5 mm	1.38 in	7.89 in	2.74 "	69.5 mm	CB CCC CE cURus PSE TUV	264 VAC	3750 VDC	83 %	OTP OVP SCP	Wire Leads	-30 ░C	50 °C	5 A
MEAN WELL USA Inc. PLC-100-20	Chassis Mount	96 W	4.8 A	Constant Current Voltage	AC DC Converter	1	20 V	90 VAC	35 mm	200.5 mm	1.38 in	7.89 in	2.74 "	69.5 mm	CB CCC CE cURus PSE TUV	264 VAC	3750 VDC	88.5 %	OTP OVP SCP	Wire Leads	-30 ░C	50 °C
MEAN WELL USA Inc. PLC-100-48	Chassis Mount	96 W	2 A	Constant Current Voltage	AC DC Converter	1	48 V	90 VAC	35 mm	200.5 mm	1.38 in	7.89 in	2.74 "	69.5 mm	CB CCC CE PSE TUV UR	264 VAC	3750 VDC	88.5 %	OTP OVP SCP	Wire Leads	-30 ░C	50 °C
