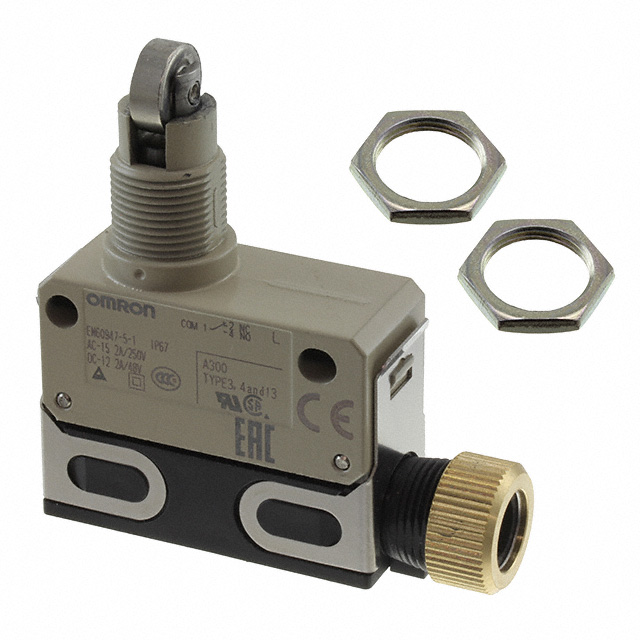

D4E-1B20 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Actuator Type | Operating Force | Pretravel | Pretravel | Mounting Type | Mechanical Life | Overtravel | Overtravel | Voltage Rating - DC | Voltage Rating - AC | Ingress Protection | Release Force | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Differential Travel | Differential Travel | Termination Style | Circuit | Operating Position | Operating Position | Switch Function | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Cross Roller Plunger | 1200 gf | 0.06 in | 1.5 mm | Panel Mount | 10000000 Cycles | 0.118 " | 3 mm | 30 V | 125 V | IP67 - Dust Tight Waterproof | 500 gf | 500000 Cycles | -10 °C | 80 °C | 0.1 mm | 0.004 in | Screw Terminal | SPDT | 1.235 in | 31.4 mm | On-Mom | 5 A |
