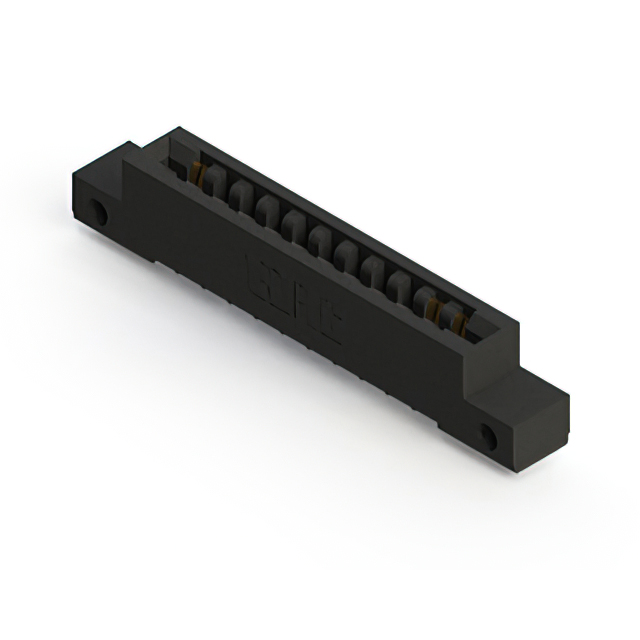

357-011 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FML 11POS 0.156
...
| Part | Contact Material | Number of Positions/Bay/Row [custom] | Material - Insulation | Mounting Type | Termination Rows | Gender | Pitch [x] | Pitch [x] | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Color | Read Out | Termination | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Single Edge | Black | Single | Solder | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 11 | 1 | -40 °C | 105 ░C | |||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Surface Mount | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Black | Dual | Solder Eyelet(s) | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 positions | 2 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | |
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole Right Angle | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | Black | Dual | Solder | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 positions | 2 | -40 °C | 105 ░C | |||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Black | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 11 | 1 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Board Edge Straddle Mount | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Black | Dual | Solder | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 positions | 2 | -40 °C | 105 ░C | |||||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Non Specified - Single Edge | Black | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 11 | 1 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | |
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Dual Edge | Black | Dual | Wire Wrap | Tin | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 positions | 2 | -40 °C | 105 ░C | ||||||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Black | Single | Solder | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 11 | 1 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Surface Mount | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Black | Dual | Solder Eyelet(s) | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 positions | 2 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Card Guides | ||
 EDAC Inc. | Copper Alloy | 11 | Polyester Thermoplastic | Through Hole | 1 | Female | 0.156 in | 3.96 mm | Semi Bellows | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Non Specified - Single Edge | Black | Single | Wire Wrap | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 11 | 1 | -40 °C | 105 ░C | 10 Áin | 0.25 Ám |
