044068 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 18POS 4.2MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Style	Applications	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Mounting Type	Termination	Contact Shape	Contact Material	Features	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0440680030	2.54 çm	100 çin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications	0.13 in	3.3 mm	Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	18	Through Hole	Solder	Square	Brass	Blind Mating	Header	All
Molex 0440680034	0.76 Ám	30 Áin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications	0.13 in	3.3 mm	Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	4	Through Hole	Solder	Square	Brass	Blind Mating	Header	All	Gold
Molex 0440680254	2.54 çm	100 çin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications			Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	24	Through Hole	Solder	Square	Brass	Blind Mating	Header	All		8.5 mm	0.335 in
Molex 0440680052	2.54 çm	100 çin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications	0.177 in	4.5 mm	Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	18	Through Hole	Solder	Square	Brass	Blind Mating Board Lock	Header	All
Molex 0440680012	0.76 Ám	30 Áin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications			Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	4	Through Hole	Solder	Square	Brass	Blind Mating Board Lock	Header	All	Gold	4.9 mm	0.193 in
Molex 0440680258	0.76 Ám	30 Áin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications			Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	10	Through Hole	Solder	Square	Brass	Blind Mating	Header	All	Gold	8.5 mm	0.335 in

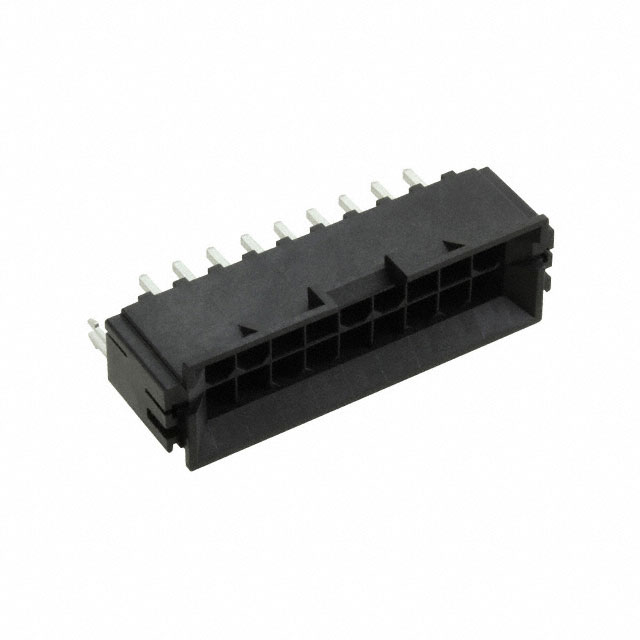

Molex 0440680107	0.76 Ám	30 Áin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications			Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	18	Through Hole	Solder	Square	Brass	Blind Mating Board Lock	Header	All	Gold	4.9 mm	0.193 in
Molex 0440680048	2.54 çm	100 çin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications	0.177 in	4.5 mm	Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	10	Through Hole	Solder	Square	Brass	Blind Mating Board Lock	Header	All
Molex 0440680276	2.54 çm	100 çin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications			Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	24	Through Hole	Solder	Square	Brass	Blind Mating Board Lock	Header	All		8.5 mm	0.335 in
Molex 0440680022	0.76 Ám	30 Áin	Shrouded - 4 Wall	Latch Holder	2	4.2 mm	0.165 in	Black	0.587 in	14.91 mm	UL94 V-0	Male Pin	4.2 mm	0.165 in	Board to Board Cable	General Purpose Industrial Medical Telecommunications	0.13 in	3.3 mm	Tin	Polyamide (PA46) Nylon 4/6	2.54 µm	100 µin	24	Through Hole	Solder	Square	Brass	Blind Mating Board Lock	Header	All	Gold
