WP2060 Series

Catalog

LED RED DIFFUSED RADIAL LEAD T/H

Part	Lens Style	Configuration	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Supplier Device Package	Wavelength - Peak	Mounting Type	Millicandela Rating	Package / Case	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Size [diameter]	Color	Lens Color	Height (Max) [Max] [z]	Viewing Angle	Lens Transparency

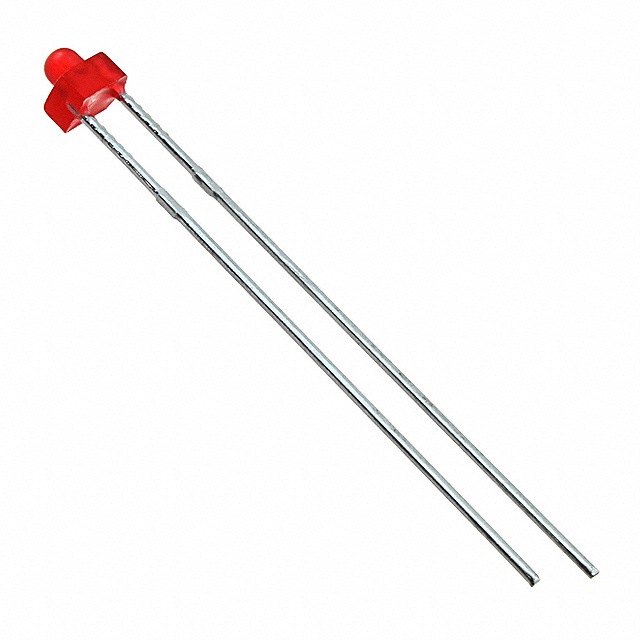

Kingbright WP2060ID	Round with Domed Top	Standard	2 V	625 nm	Radial Lead	627 nm	Through Hole	15 mcd	Radial	20 mA	2.4 mm	3.3 mm	1.8 mm Dia	Red	Red	3.1 mm	70 °	Diffused
Kingbright WP2060SRD	Round with Domed Top	Standard	1.85 V	640 nm	Radial Lead	660 nm	Through Hole	200 mcd	Radial	20 mA	2.4 mm	3.3 mm	1.8 mm Dia	Red	Red	3.1 mm	70 °	Diffused
Kingbright WP2060GD	Round with Domed Top	Standard	2.2 V	568 nm	Radial Lead	565 nm	Through Hole	10 mcd	Radial	20 mA	2.4 mm	3.3 mm	1.8 mm Dia	Green	Green	3.1 mm	70 °	Diffused
Kingbright WP2060YD	Round with Domed Top	Standard	2.1 V	588 nm	Radial Lead	590 nm	Through Hole	8 mcd	Radial	20 mA	2.4 mm	3.3 mm	1.8 mm Dia	Yellow	Yellow	3.1 mm	70 °	Diffused
