PPTC051 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 5POS 0.1 TIN PCB
| Part | Insulation Material | Contact Shape | Contact Material | Contact Finish - Post | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Voltage Rating | Number of Positions Loaded | Contact Type | Fastening Type | Mounting Type | Termination | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

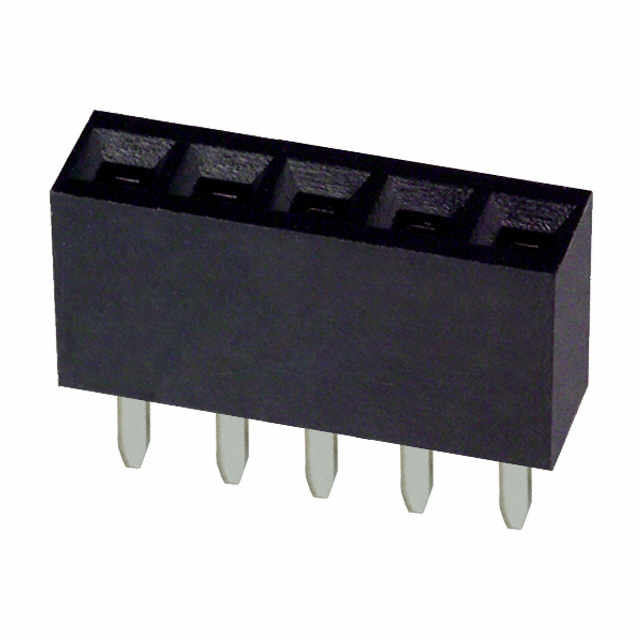

 Sullins Connector Solutions | Polyester | Square | Phosphor Bronze | Tin | Black | -40 C | 105 ░C | Header | 1 | 3 A | 0.126 " | 3.2 mm | 5 | 0.1 " | 2.54 mm | UL94 V-0 | 250 V | All | Female Socket | Push-Pull | Through Hole | Solder | 0.335 " | 8.51 mm | ||

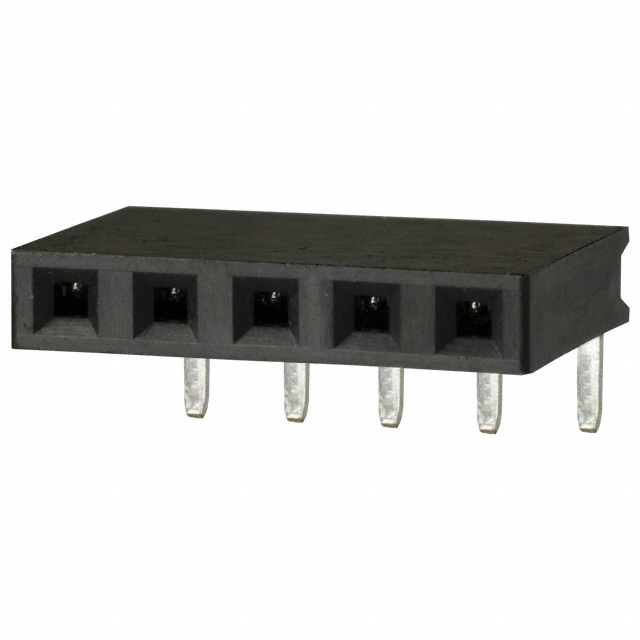

 Sullins Connector Solutions | Polyester | Square | Phosphor Bronze | Tin | Black | -40 C | 105 ░C | Header | 1 | 3 A | 5 | 0.1 " | 2.54 mm | UL94 V-0 | 250 V | All | Female Socket | Push-Pull | Right Angle Through Hole | Solder | 0.1 in | 2.54 mm | 0.124 in | 3.15 mm |
