EDA20 Series
Manufacturer: TE Intercontec
Beta
⌘K

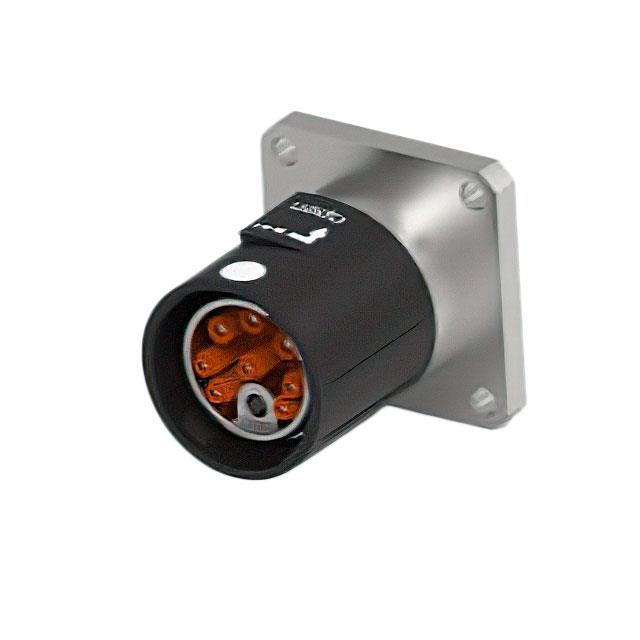

CONN PLG HSG FMALE 9POS PNL MT
| Part | Shell Finish | Includes Total Count | Includes | Ingress Protection Description | Ingress Protection IP Rating | Features | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Orientation | Connector Type | Insert Material | Mounting Feature | Number of Positions | Position Types | Shell Material | Housing Color | Shielding | Contact Shape | Fastening Type | Type | Material Flammability Rating | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Nickel | 2 pcs | Connector O-Ring | Dust Tight Water Resistant Waterproof | IP66 IP67 | Coupling Nut | -20 °C | 130 °C | Panel Mount | Keyed | Plug Housing | Nylon PA PBT Polyamide Polybutylene Terephthalate | Flange | 9 | PE Power | Zinc Die Cast | Silver | Unshielded | Circular | Push-Twist | For Female Sockets | UL94 V-0 | Contacts Not Included |
