EEU-TA Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

ELECTROLYTIC CAPACITOR, TA SERIES, 330 ΜF, 35 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 125°C, POLAR

Part	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Ripple Current @ High Frequency	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Lifetime @ Temp.	Mounting Type	Tolerance	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Package / Case	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEU-TA1V331	Polar	10 mm	0.394 in	22 mm	0.866 in	35 V	930 mA	330 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	5 mm	0.197 in	604.5 mA	Radial Can	100 mOhms
Panasonic Industrial Automation Sales EEU-TA1J221S	Polar	18 mm	0.709 "			63 V		220 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	7.5 mm	0.295 in	845 mA	Radial Can	120 mOhms	0.63 in	16 mm
Panasonic Industrial Automation Sales EEU-TA1H331S	Polar	16 mm	0.63 in	16.5 mm	16.51 mm	50 VDC	1.45 A	330 µF	125 °C	-40 °C	General Purpose		Through Hole	20 %	7.5 mm	0.295 in	942.5 mA	Radial Can	88 mOhms
Panasonic Industrial Automation Sales EEU-TA1E471SB	Polar	12.5 mm	0.492 in			25 VDC	1.085 A	470 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	5 mm	0.197 in	813.8 mA	Radial Can	70 mOhms	0.63 in	16 mm
Panasonic Industrial Automation Sales EEU-TA1E102LB	Polar	12.5 mm	0.492 in	27 mm	1.063 in	25 VDC	1.75 A	1000 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	5 mm	0.197 in	1.313 A	Radial Can	33 mOhms
Panasonic Industrial Automation Sales EEU-TA1A472SB	Polar	18 mm	0.709 "	27 mm	1.063 in	10 V	2.47 A	4700 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	7.5 mm	0.295 in		Radial Can	22 mOhms
Panasonic Industrial Automation Sales EEU-TA1J220B	Polar	8 mm	0.315 "			63 V	310 mA	22 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	5 mm	0.197 in	201.5 mA	Radial Can	470 mOhms	0.492 in	12.5 mm

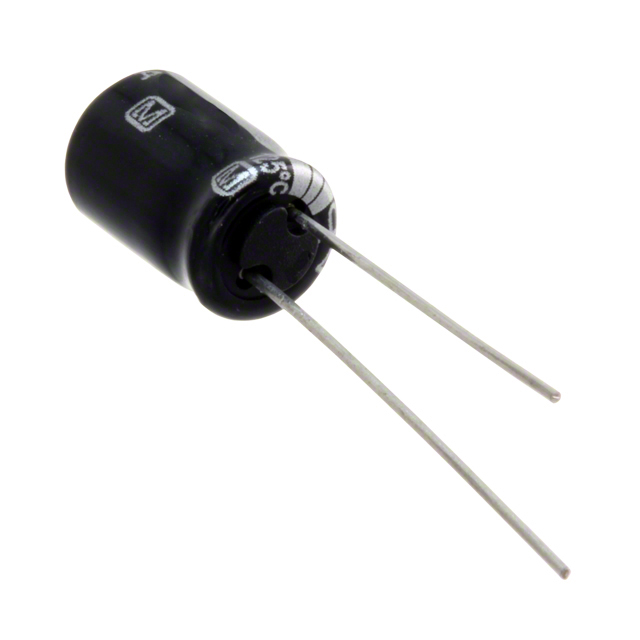

Panasonic Industrial Automation Sales EEU-TA1H470S	Polar	8 mm	0.315 "			50 VDC	440 mA	47 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	3.5 mm	0.138 in	120 Hz 286 mA	Radial Can	350 mOhms	0.492 in	12.5 mm
Panasonic Industrial Automation Sales EEU-TA1V102S	Polar	18 mm	0.709 "	22 mm	0.866 in	35 V	2.18 A	1000 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	7.5 mm	0.295 in	1.635 A	Radial Can	46 mOhms
Panasonic Industrial Automation Sales EEU-TA1A222B	Polar	16 mm	0.63 in	22 mm	0.866 in	10 V	1.985 A	2200 µF	125 °C	-40 °C	General Purpose	2000 Hrs	Through Hole	20 %	7.5 mm	0.295 in	1.588 A	Radial Can	32 mOhms
