G2RL-2 D Series

Catalog

RELAY GEN PURPOSE DPDT 8A 5V

Part	Switching Voltage	Contact Rating (Current)	Coil Insulation	Mounting Type	Relay Type	Coil Type	Must Release Voltage	Contact Material	Must Operate Voltage	Seal Rating	Coil Current	Release Time	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Voltage	Load - Max Switching	Approval Agency	Coil Resistance	Termination Style

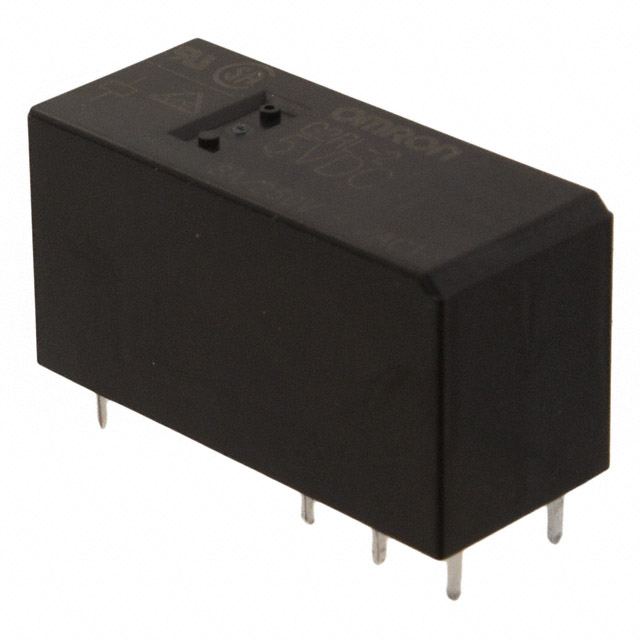

Omron Electronics Inc-EMC Div G2RL-2 DC5	300 VDC 440 VAC	8 A	Class F	Through Hole	General Purpose	Non Latching	0.5 VDC	Cadmium Free Silver Alloy	3.5 VDC	Sealed - Flux Protection	80 mA	5 ms	15 ms	85 °C	-40 °C	DPDT (2 Form C)	5 VDC	2400 W 3520 VA	CQC CSA UR VDE	62.5 Ohms	PC Pin
Omron Electronics Inc-EMC Div G2RL-2 DC12	300 VDC 440 VAC	8 A	Class F	Through Hole	General Purpose	Non Latching	1.2 VDC	Cadmium Free Silver Alloy	8.4 VDC	Sealed - Flux Protection	33.3 mA	5 ms	15 ms	85 °C	-40 °C	DPDT (2 Form C)	12 VDC	2400 W 3520 VA	CQC CSA UR VDE	360 Ohms	PC Pin
Omron Electronics Inc-EMC Div G2RL-2 DC18	300 VDC 440 VAC	8 A	Class F	Through Hole	General Purpose	Non Latching	1.8 VDC	Cadmium Free Silver Alloy	12.6 VDC	Sealed - Flux Protection	22.2 mA	5 ms	15 ms	85 °C	-40 °C	DPDT (2 Form C)	18 VDC	2400 W 3520 VA	CQC CSA UR VDE	811 Ohms	PC Pin
Omron Electronics Inc-EMC Div G2RL-2 DC48	300 VDC 440 VAC	8 A	Class F	Through Hole	General Purpose	Non Latching	4.8 VDC	Cadmium Free Silver Alloy	33.6 VDC	Sealed - Flux Protection	9 mA	5 ms	15 ms	85 °C	-40 °C	DPDT (2 Form C)	48 VDC	2400 W 3520 VA	CQC CSA UR VDE	5.36 kOhms	PC Pin
