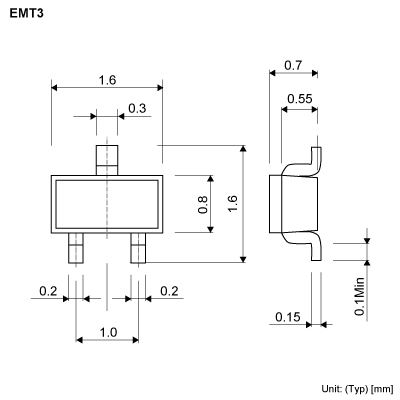

DTC124EE3HZG Series

NPN, SOT-416, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Catalog

NPN, SOT-416, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Part	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Qualification	Frequency - Transition	Grade	Mounting Type	Power - Max [Max]	Resistor - Emitter Base (R2)	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Resistor - Base (R1)	Transistor Type	Package / Case	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Resistors Included
Rohm Semiconductor DTC124XCAHZGT116	100 mA	68	AEC-Q101	250 MHz	Automotive	Surface Mount	350 mW	47000 Ohms	SST3	300 mV	22 kOhms	NPN - Pre-Biased	SC-59 SOT-23-3 TO-236-3
Rohm Semiconductor DTC124ECAT116	100 mA	56 hFE		250 MHz		Surface Mount	200 mW	22 kOhms	SST3	300 mV	22 kOhms	NPN - Pre-Biased	SC-59 SOT-23-3 TO-236-3	500 nA	50 V
Rohm Semiconductor DTC124EEBTL	30 mA	56 hFE		250 MHz		Surface Mount	150 mW	22 kOhms	EMT3F (SOT-416FL)	300 mV	22 kOhms	NPN - Pre-Biased	SC-89 SOT-490	500 nA	50 V
Rohm Semiconductor DTC124EMT2L	30 mA	56 hFE		250 MHz		Surface Mount	150 mW	22 kOhms	VMT3	300 mV	22 kOhms	NPN - Pre-Biased	SOT-723	500 nA	50 V
Rohm Semiconductor DTC124ECAHZGT116	100 mA	56 hFE	AEC-Q101	250 MHz	Automotive	Surface Mount	350 mW	22 kOhms	SST3	300 mV	22 kOhms	NPN - Pre-Biased	SC-59 SOT-23-3 TO-236-3
Rohm Semiconductor DTC124XE3HZGTL	100 mA	68	AEC-Q101	250 MHz	Automotive	Surface Mount	150 mW	47000 Ohms	EMT3	300 mV	22 kOhms	NPN - Pre-Biased	SC-75 SOT-416	500 nA	50 V
Rohm Semiconductor DTC124EMFHAT2L	100 mA	56 hFE	AEC-Q101	250 MHz	Automotive	Surface Mount	150 mW	22 kOhms	VMT3	300 mV	22 kOhms	NPN - Pre-Biased	SOT-723	500 nA	50 V
Rohm Semiconductor DTC124TUAT106	100 mA	100		250 MHz		Surface Mount	200 mW		UMT3	300 mV	22 kOhms	NPN - Pre-Biased	SC-70 SOT-323	500 nA	50 V	R1 Only
Rohm Semiconductor DTC124EUBHZGTL	100 mA	56 hFE	AEC-Q101	250 MHz	Automotive	Surface Mount	200 mW	22 kOhms	UMT3F	300 mV	22 kOhms	NPN - Pre-Biased	SC-85
Rohm Semiconductor DTC124XCAT116	100 mA	68		250 MHz		Surface Mount	200 mW	47000 Ohms	SST3	300 mV	22 kOhms	NPN - Pre-Biased	SC-59 SOT-23-3 TO-236-3	500 nA	50 V

Catalog

NPN, SOT-416, R1=R2 Potential Divider Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Key Features

• Built-In Biasing Resistors, R1= 22kΩ, R2= 47kΩ, Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) ., Only the on/off conditions need to be set for operation, making the circuit design easy., Complementary PNP Types: DTA124XCA HZG

Description

DTC124EU3HZG is an digital transistor (Resistor built-in type transistor). Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. This is a high-reliability product of automotive grade qualified to AEC-Q101.
