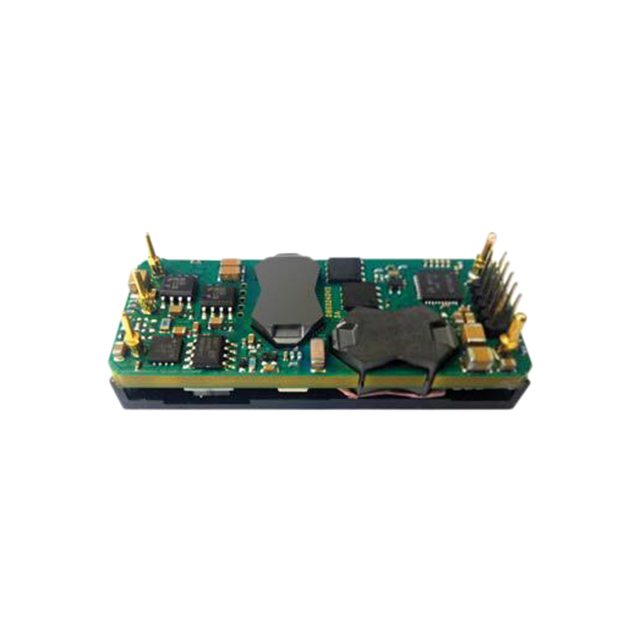

DBE0125 Series

Catalog

DC DC CONVERTER 12V 300W

Part	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Isolation	Type	Efficiency	Features	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Mounting Type	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
Murata Electronics DBE0125V2N2BSC	12 V	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active Low Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W
Murata Electronics DBE0125V2NC	12 V					2.3 in 58.4 mm		75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active Low Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W	22.86 mm 22.9 mm	0.46 in 11.7 mm
Murata Electronics DBE0125V2N1BC	12 V	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active Low Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W
Murata Electronics DBE0125V2P2BSC	12 V	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active High Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W
Murata Electronics DBE0125V2N1BSC	12 V	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active Low Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W
Murata Electronics DBE0125V2P2C	12 V					2.3 in 58.4 mm		75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active High Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W	22.86 mm 22.9 mm	0.46 in 11.7 mm
Murata Electronics DBE0125V2P1SC	12 V					2.3 in 58.4 mm		75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active High Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W	22.86 mm 22.9 mm	0.46 in 11.7 mm
Murata Electronics DBE0125V2NBC	12 V	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active Low Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W

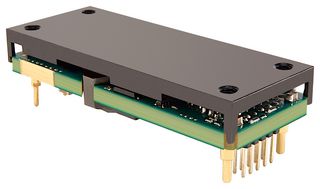

Murata Electronics DBE0125V2NBSC	12 V	2.3 in	13.1 mm	0.9 in	22.9 mm	58.4 mm	0.52 in	75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active Low Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W
Murata Electronics DBE0125V2P2SC	12 V					2.3 in 58.4 mm		75 V	2250 VDC	Isolated Module Digital	94.6 %	OCP OTP OVP Remote On/Off SCP UVLO	1/8 Brick 16-DIP Module (15 Leads)	1	85 °C	-40 C	Active High Enable	Through Hole	25 A	ITE (Commercial)	36 V	300 W	22.86 mm 22.9 mm	0.46 in 11.7 mm
