XH3B Series

Catalog

CONN SOCKET 30POS VERT GOLD

Part	Pitch	Pitch	Mated Stacking Heights	Contact Finish	Number of Positions	Mounting Type	Connector Type	Height Above Board [z]	Height Above Board [z]	Features	Number of Rows [custom]
Omron Electronics Inc-EMC Div XH3B-3041-A	0.05 in	1.27 mm	12 mm 14 mm 16 mm	Gold	30	Through Hole	Socket Outer Shroud Contacts	9.3 mm	0.366 in	Board Lock	2
Omron Electronics Inc-EMC Div XH3B-3042-A	0.05 in	1.27 mm		Gold	30	Right Angle Through Hole	Socket Outer Shroud Contacts			Board Lock	2

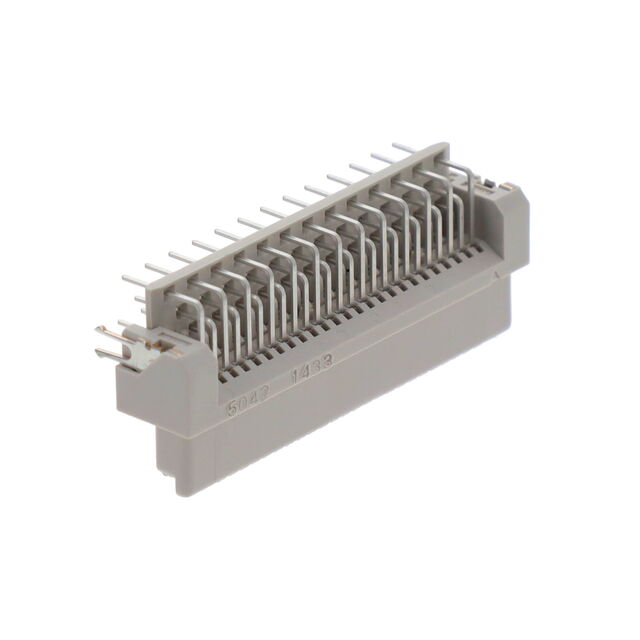

Omron Electronics Inc-EMC Div XH3B-5042-A	0.05 in	1.27 mm		Gold	50	Right Angle Through Hole	Socket Outer Shroud Contacts			Board Lock	2

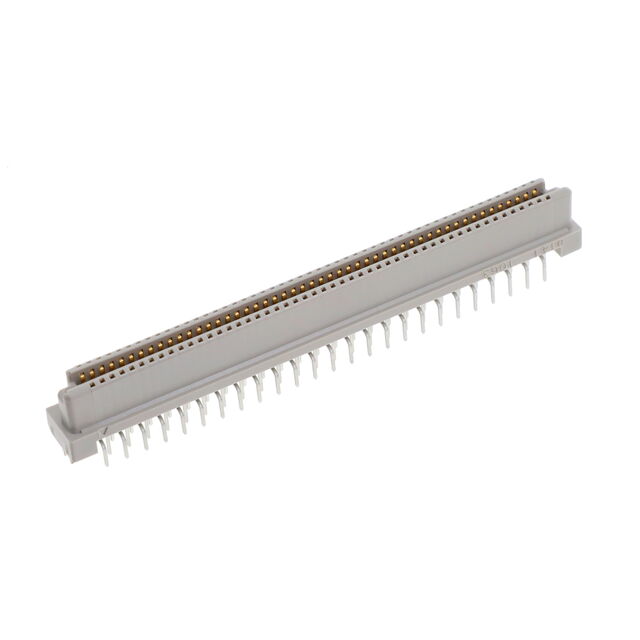

Omron Electronics Inc-EMC Div XH3B-0141-A	0.05 in	1.27 mm	12 mm 14 mm 16 mm	Gold	100	Through Hole	Socket Outer Shroud Contacts	9.3 mm	0.366 in	Board Lock	2

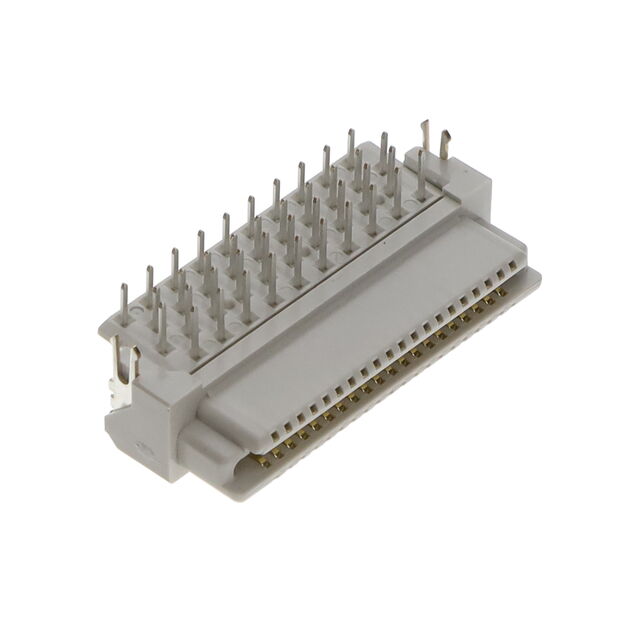

Omron Electronics Inc-EMC Div XH3B-4042-A	0.05 in	1.27 mm		Gold	40	Right Angle Through Hole	Socket Outer Shroud Contacts			Board Lock	2
