774-E25 Series
Manufacturer: NorComp Inc.
Beta
⌘K

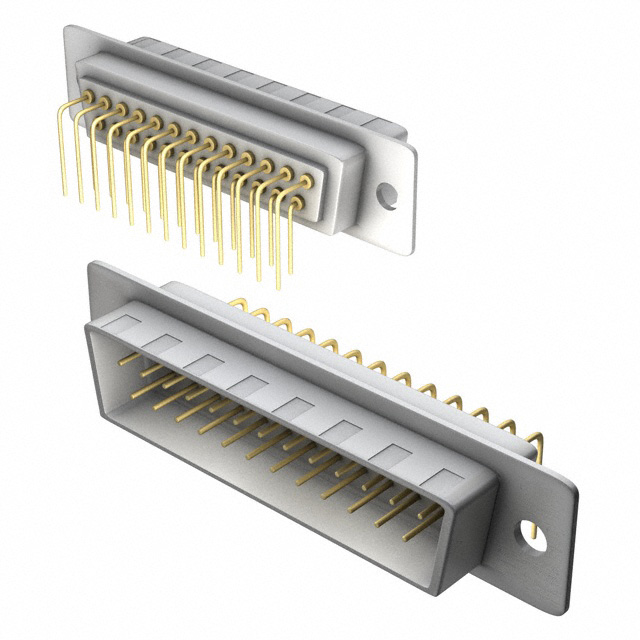

STANDARD D SUB CONNECTOR, SEAL D SERIES, DB, PLUG, 25, STEEL BODY, SOLDER ROHS COMPLIANT: YES
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Number of Rows [custom] | Flange Feature | Contact Finish | Current Rating (Amps) | Connector Style | Ingress Protection | Mounting Type | Connector Type | Contact Finish Thickness | Backset Spacing | Backset Spacing | Contact Type | Material Flammability Rating | Termination | Number of Positions | Shell Material, Finish | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | 100 °C | -50 °C | White | Brass | 2 | Housing/Shell (Unthreaded) | Gold | 5 A | D-Sub | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Plug Male Pins | Flash | 9.4 mm | 0.37 in | Signal | UL94 V-0 | Solder | 25 | Nickel Plated Steel | Grounding Indents | B DB | 3 |
