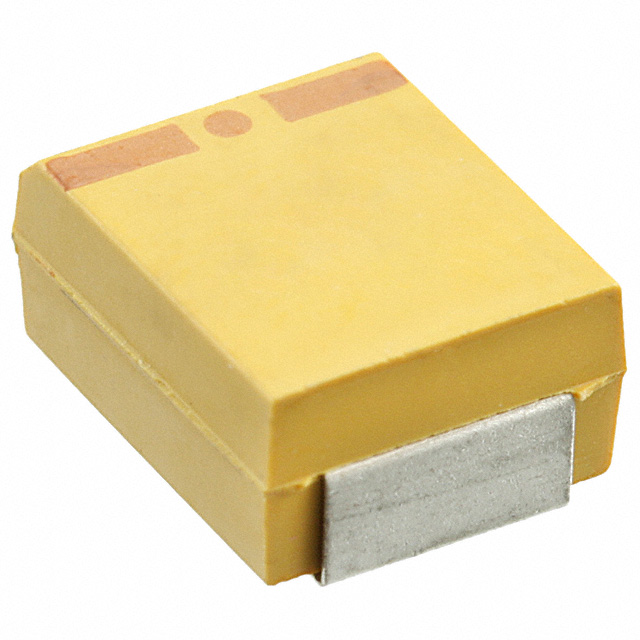

T494E Series
Manufacturer: KEMET
Beta
⌘K
CAPACITOR,100UF,20VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Lifetime @ Temp. | Manufacturer Size Code | Capacitance | Tolerance | ESR (Equivalent Series Resistance) | Voltage - Rated | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Package / Case | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | -55 C | 125 °C | General Purpose | 2000 Hrs | E | 100 µF | 10 % | 300 mOhm | 20 V | 6 mm | 0.236 " | 0.287 " | 7.3 mm | 2824 | 7260 Metric | Surface Mount | Molded |
KEMET | -55 C | 125 °C | General Purpose | 2000 Hrs | E | 220 µF | 10 % | 500 mOhms | 16 V | 6 mm | 0.236 " | 0.287 " | 7.3 mm | 2824 | 7260 Metric | Surface Mount | Molded |
KEMET | -55 C | 125 °C | General Purpose | 2000 Hrs | E | 470 µF | 10 % | 200 mOhm | 6.3 VDC | 6 mm | 0.236 " | 0.287 " | 7.3 mm | 2824 | 7260 Metric | Surface Mount | Molded |

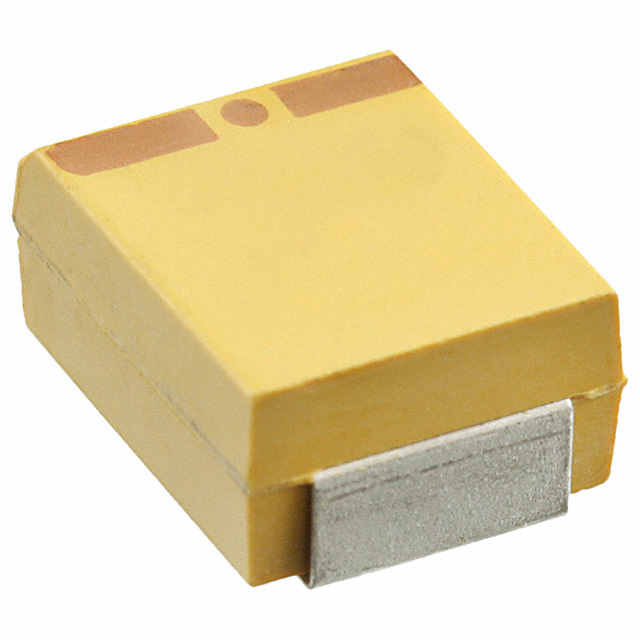

 KEMET | -55 C | 125 °C | General Purpose | 2000 Hrs | E | 470 µF | 20 % | 100 mOhms | 10 V | 6 mm | 0.236 " | 0.287 " | 7.3 mm | 2924 | 7360 Metric | Surface Mount | Molded |
