SA16300 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

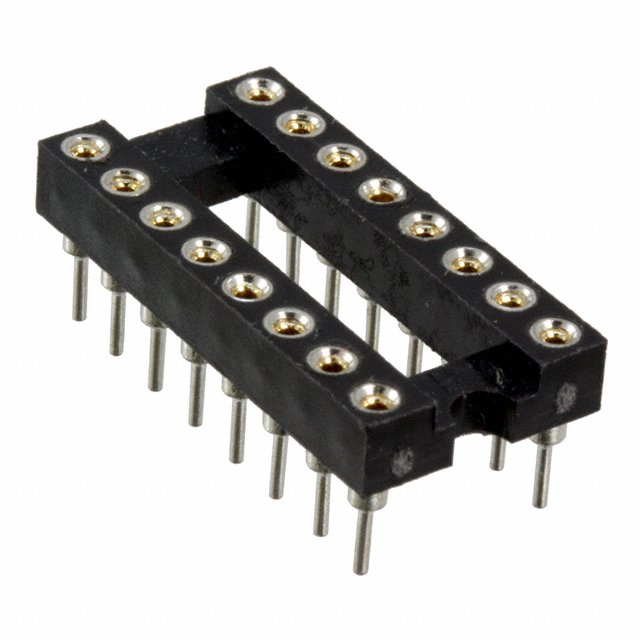

CONN IC DIP SOCKET 16POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Pitch - Mating | Pitch - Mating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post | Pitch - Post | Type | Type | Type | Contact Finish Thickness - Mating | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Contact Finish - Mating | Mounting Type | Contact Material - Post [custom] | Contact Finish - Post | Features | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | UL94 V-0 | 4 mOhm | 0.1 " | 2.54 mm | Glass Filled Polyester Thermoplastic | -40 C | 105 ░C | 0.1 in | 2.54 mm | 7.62 mm | 0.3 in | DIP | Flash | Beryllium Copper | 200 µin | 5.08 µm | Solder | Gold | Through Hole | Brass | Tin | Open Frame | 2 | 16 | 8 |
