MRPR-20-22-33 Series

MRPR-20 5494 22-33

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

MRPR-20 5494 22-33

Part	Length - Overall [x]	Length - Overall [x]	Capacitance	Operate Range [Max]	Operate Range [Min]	Operate Time	Current - Switching	Voltage - Switching AC	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size - Body [x]	Size - Body [diameter]	Size - Body [diameter]	Size - Body [x]	Voltage - Switching DC	Power - Rated	Circuit	Release Time	Termination Style
Littelfuse/Commercial Vehicle Products MRPR-20-22-33	2.23 in	56.64 mm	0.2 pF	33 AT	22	750 µs	1.1 A 1.5 A	265 V	Glass Body Reed	-20 C	125 °C	Through Hole	20.32 mm	2.84 mm	0.112 in	0.8 in	250 V	50 W	SPST-NO	0.3 ms	Axial

Catalog

MRPR-20 5494 22-33

Key Features

• Miniature normally open switch

• Capable of switching 265Vac or 1.5A at up to 50W/VA

• Minimum breakdown voltage 750Vdc

• Available sensitivity range 17-43 AT

Description

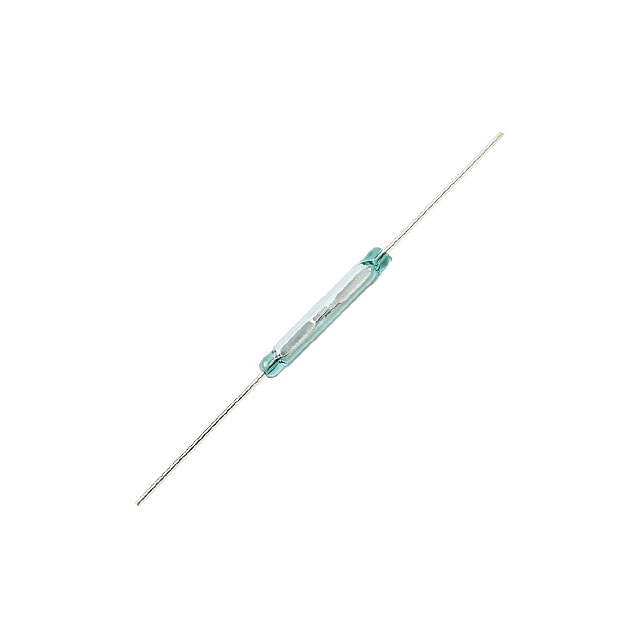

The MRPR-20 Reed Switch is a miniature, normally open switch with a 20.32mm long x 2.84mm diameter (0.800" x 0.112") glass envelope, capable of high voltage and power switching of 265Vac at 50VA. The MRPR-20 has high insulation resistance of 1010 ohms minimum and contact resistance less than 100 milli-ohms.
