VOF-300 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 48V 200W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Number of Outputs	Power (Watts)	Voltage - Isolation	Type	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Voltage - Output 1	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Applications	Efficiency	Approval Agency	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [custom]

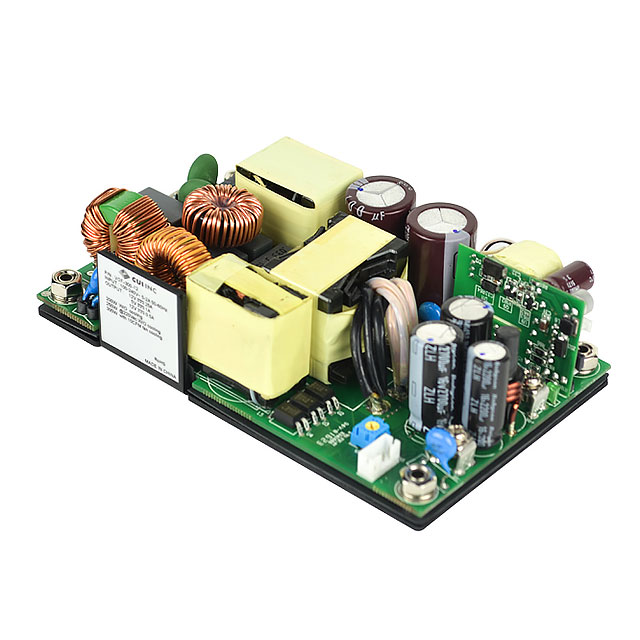

CUI Inc. VOF-300-48	80 ¯C	-40 °C	4.17 A	1	200 Watts 300 W	3000 V	Open Frame	264 VAC	90 VAC	Chassis Mount	48 V	60950-1 61000-6-1 61000-6-2	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	ITE (Commercial)	94 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input

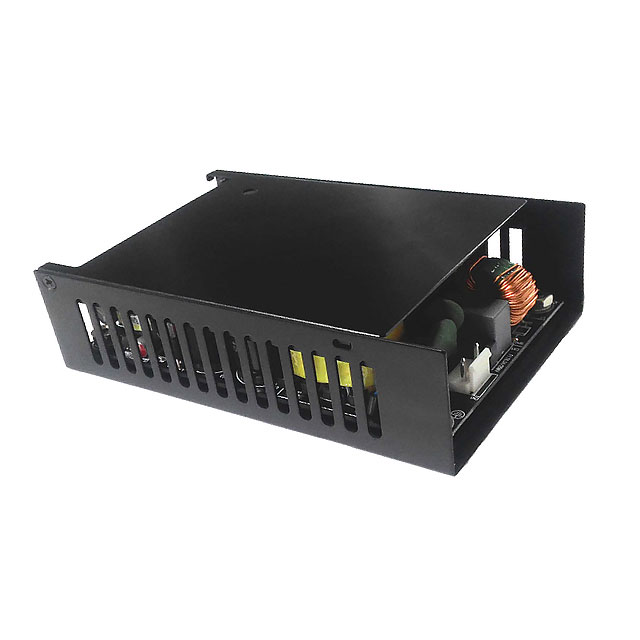

CUI Inc. VOF-300-48-CNF	80 ¯C	-40 °C	4.17 A	1	200 Watts 300 W	3000 V	Enclosed	264 VAC	90 VAC	Chassis Mount	48 V	60950-1 61000-6-1 61000-6-2	3.46 in	1.59 in	5.35 in		ITE (Commercial)	94 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	88 mm	40.4 mm	136 mm
CUI Inc. VOF-300-24	80 ¯C	-40 °C	8.33 A	1	200 Watts 300 W	3000 V	Open Frame	264 VAC	90 VAC	Chassis Mount	24 V	60950-1 61000-6-1 61000-6-2	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-24-CNF	80 ¯C	-40 °C	8.33 A	1	200 Watts 300 W	3000 V	Enclosed	264 VAC	90 VAC	Chassis Mount	24 V	60950-1 61000-6-1 61000-6-2	3.46 in	1.59 in	5.35 in		ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	88 mm	40.4 mm	136 mm
CUI Inc. VOF-300-36-CNF	80 ¯C	-40 °C	5.56 A	1	200 Watts 300 W	3000 V	Enclosed	264 VAC	90 VAC	Chassis Mount		60950-1 61000-6-1 61000-6-2	3.46 in	1.59 in	5.35 in		ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	88 mm	40.4 mm	136 mm	36 V
CUI Inc. VOF-300-12	80 ¯C	-40 °C	16.67 A	1	200 Watts 300 W	3000 V	Open Frame	264 VAC	90 VAC	Chassis Mount	12 V	60950-1 61000-6-1 61000-6-2	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	ITE (Commercial)	92.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
CUI Inc. VOF-300-36	80 ¯C	-40 °C	5.56 A	1	200 Watts 300 W	3000 V	Open Frame	264 VAC	90 VAC	Chassis Mount		60950-1	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	ITE (Commercial)	93.5 %	CB Scheme EN IEC SIQ TUV UL	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input				36 V
