M80-541 Series

Catalog

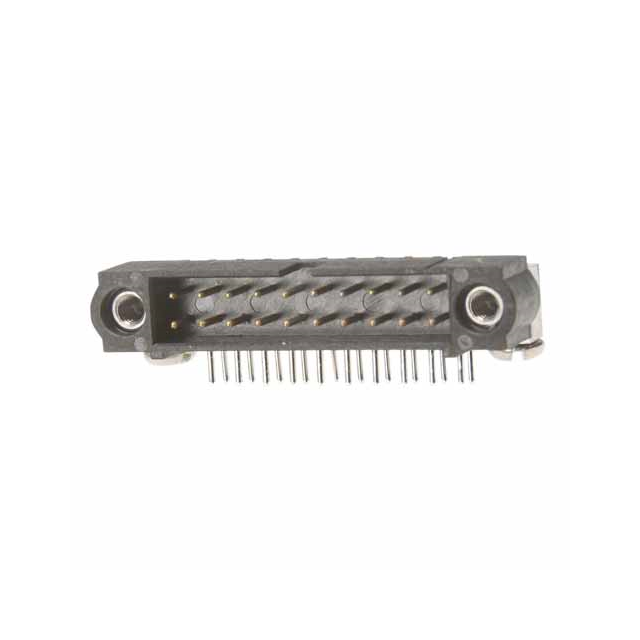

7+7 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Number of Rows [custom]	Contact Type	Insulation Color	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Contact Shape	Mounting Type	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Material	Number of Positions	Contact Length - Post	Contact Length - Post	Voltage Rating	Termination	Features	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]
Harwin Inc. M80-5411405	29.5 µin	0.75 µm	Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Gold	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	14	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C
Harwin Inc. M80-5414842			Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Tin	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	48	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C	118.1 µin	3 µm
Harwin Inc. M80-5413605	29.5 µin	0.75 µm	Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Gold	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	36	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C
Harwin Inc. M80-5412622			Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Tin-Lead	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	26	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C	118.1 µin	3 µm
Harwin Inc. M80-5410605	29.5 µin	0.75 µm	Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Gold	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	6	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C
Harwin Inc. M80-5413642			Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Tin	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	36	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C	118.1 µin	3 µm
Harwin Inc. M80-5414022			Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Tin-Lead	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	40	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C	118.1 µin	3 µm
Harwin Inc. M80-5410422			Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Tin-Lead	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	4	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C	118.1 µin	3 µm
Harwin Inc. M80-5413805	29.5 µin	0.75 µm	Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Gold	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	38	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C
Harwin Inc. M80-5412205	29.5 µin	0.75 µm	Board to Board Cable	2	Male Pin	Black	Threaded	29.5 µin	0.75 µm	Gold	Circular	Right Angle Through Hole	Gold	All	2.2 A	2 mm	0.079 in	Polyphenylene Sulfide (PPS) Glass Filled	Header	UL94 V-0	5.55 mm	0.218 in	Phosphor Bronze	22	4.5 mm	0.177 in	800 V	Solder	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	0.079 "	2 mm	-55 C	125 °C
