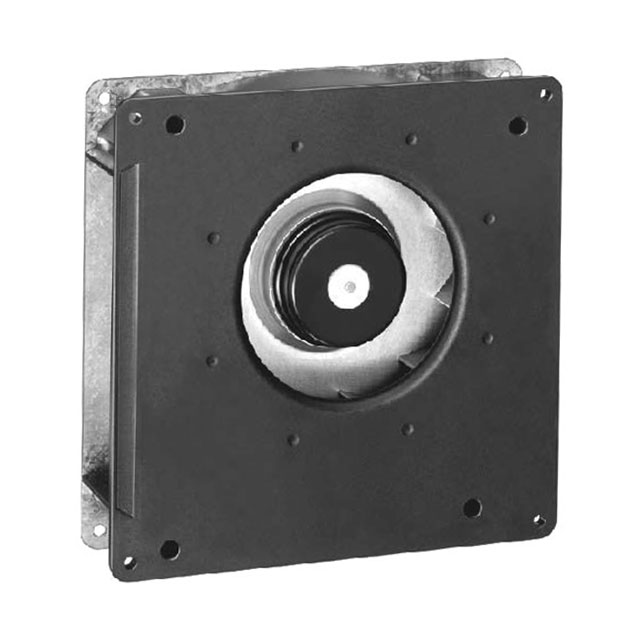

RG125 Series

Catalog

BLOWERS & CENTRIFUGAL FANS DC RADIAL BLOWER, 180X180X40MM, 12VDC, 51.5CFM, 5.2W, 2550RPM, SPEED SIGNAL

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Voltage - Rated	Termination	Air Flow	Air Flow	RPM	Bearing Type	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Width [x]	Fan Type	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Ingress Protection	Features	Power (Watts)	Material - Blade	Noise	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]
ebm-papst Inc. RG125-19/12N/12	7 V	15 V	Steel	105000 Hrs	12 VDC	3 Wire Leads	51.5 CFM	1.44 m³/min	2550 RPM	Ball	1.6 lbs	725.7 g	75 ░C	-30 ░C	40 mm	Blower Centrifugal	180 mm	Square	180 mm	IP54 - Dust Protected Water Resistant	Speed Sensor (Tach)	5.2 W
ebm-papst Inc. RG125-19/12NM	7 V	15 V	Glass Filled Plastic	70000 Hrs	12 VDC	2 Wire Leads	35.3 CFM	0.988 mł/min	1750 RPM	Ball	1.6 lbs	725.7 g	75 ░C	-30 ░C	40 mm	Blower Centrifugal	180 mm	Square	180 mm			2 W	Fiberglass Reinforced Plastic	48 dB

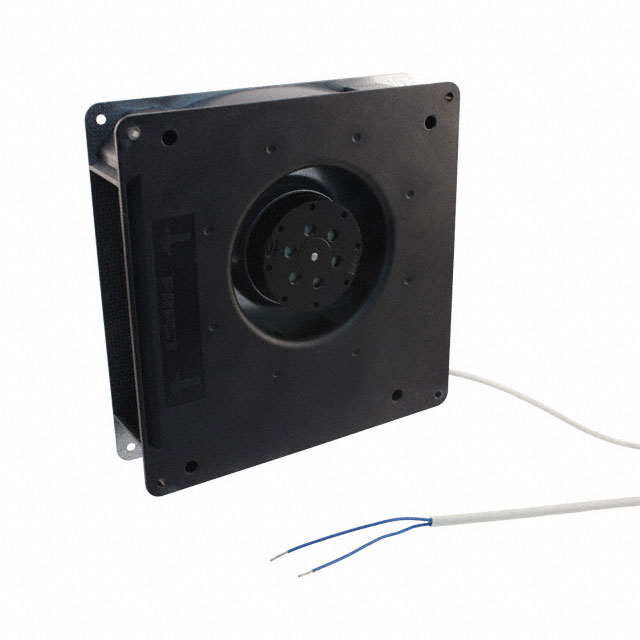

ebm-papst Inc. RG125-19/06			Fiberglass Reinforced Polybutylene Terephthalate (PBT)	40000 Hrs	115 VAC	2 Wire Leads	55.3 CFM	1.55 m³/min	2750 RPM	Ball	2 lbs	907.2 g			40 mm	Blower Flatpak	180 mm	Square	180 mm			19 W	Fiberglass Reinforced Plastic	60 dB(A)	CE CSA UL VDE
ebm-papst Inc. RG125-19/14N/2	12 VDC	28 V	Glass Filled Plastic	62500 Hrs	24 VDC	3 Wire Leads	51.5 CFM	1.44 m³/min	2550 RPM	Ball	1.6 lbs	725.7 g	75 ░C	-30 ░C	40 mm	Blower Centrifugal	180 mm	Square	180 mm		Speed Sensor (Tach)	5 W	Fiberglass Reinforced Plastic	58 dB(A)
ebm-papst Inc. RG125-19/56			Glass Filled Plastic	37500 Hrs	230 VAC	2 Wire Leads	50.6 CFM	1.42 m³/min	2550 RPM	Ball	2 lbs	907.2 g	70 °C	-30 ░C	40 mm	Blower Flatpak	180 mm	Square	180 mm			20 W	Fiberglass Reinforced Plastic	60 dB(A)	CE CSA UL VDE	70 °C	-30 °C
ebm-papst Inc. RG125-19/14N	12 VDC	28 V	Glass Filled Plastic	62500 Hrs	24 VDC	2 Wire Leads	51.5 CFM	1.44 m³/min	2550 RPM	Ball	1.6 lbs	725.7 g	75 ░C	-30 ░C	40 mm	Blower Centrifugal	180 mm	Square	180 mm			5 W	Fiberglass Reinforced Plastic	58 dB(A)
