RK73B2B Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

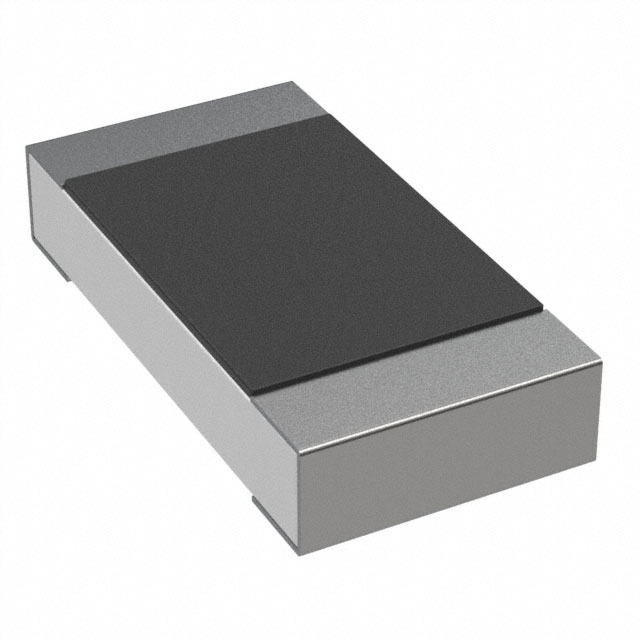

RES 1.8K OHM 2% 1/4W 1206

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Features	Power (Watts)	Power (Watts)	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Composition	Supplier Device Package	Temperature Coefficient	Number of Terminations [custom]	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KOA Speer Electronics, Inc. RK73B2BTTD182G	155 C	-55 C	AEC-Q200	Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	1.8 kOhms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BTTD271G	155 C	-55 C	AEC-Q200	Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	270 Ohms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BRTTD390J	125 °C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	5 %	Thick Film	1206	200 ppm/°C	2	39 Ohms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BTTD623G	155 C	-55 C	AEC-Q200	Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	62 kOhms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BTTD242G	155 C	-55 C	AEC-Q200	Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	2.4 kOhms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BTTD1R8G	155 C	-55 C	AEC-Q200	Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	1.8 Ohms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BRTTD183G	125 °C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	18 kOhms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BRTTD1R2J	125 °C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	5 %	Thick Film	1206	200 ppm/°C	2	1.2 Ohms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BRTTD155G	125 °C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	2 %	Thick Film	1206	200 ppm/°C	2	1.5 MOhms	0.7 mm	0.028 "
KOA Speer Electronics, Inc. RK73B2BTTD120J	155 C	-55 C	AEC-Q200	Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	0.063 "	0.126 "	3.2 mm	1.6 mm	5 %	Thick Film	1206	200 ppm/°C	2	12 Ohms	0.7 mm	0.028 "
