638-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

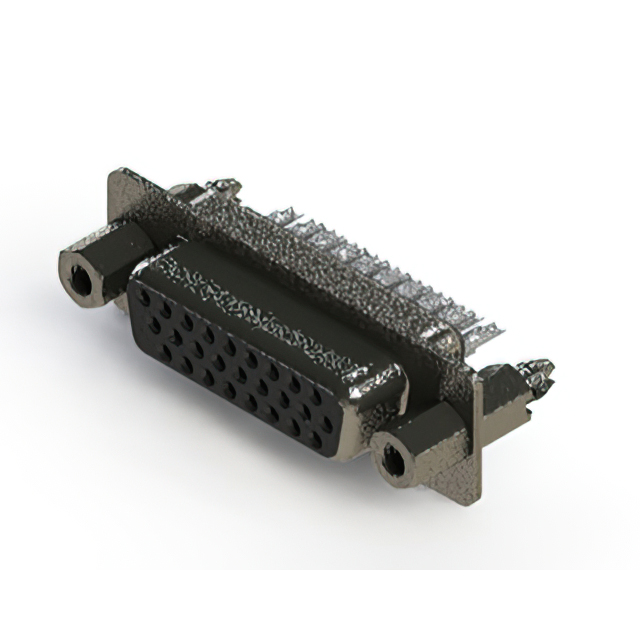

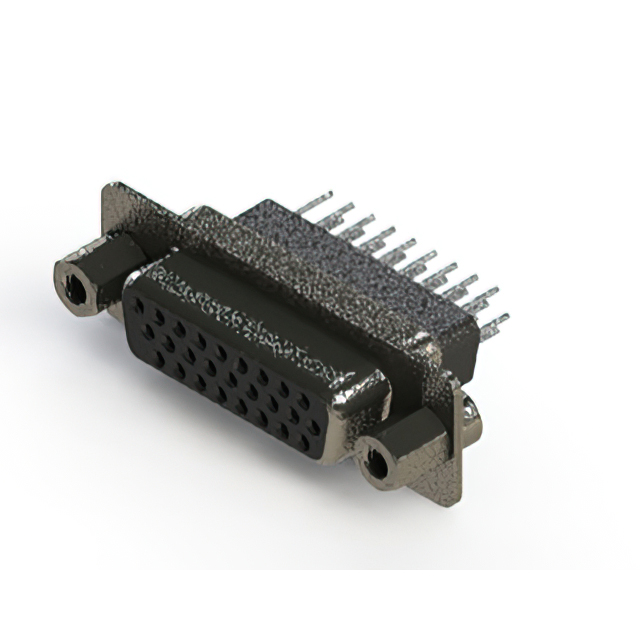

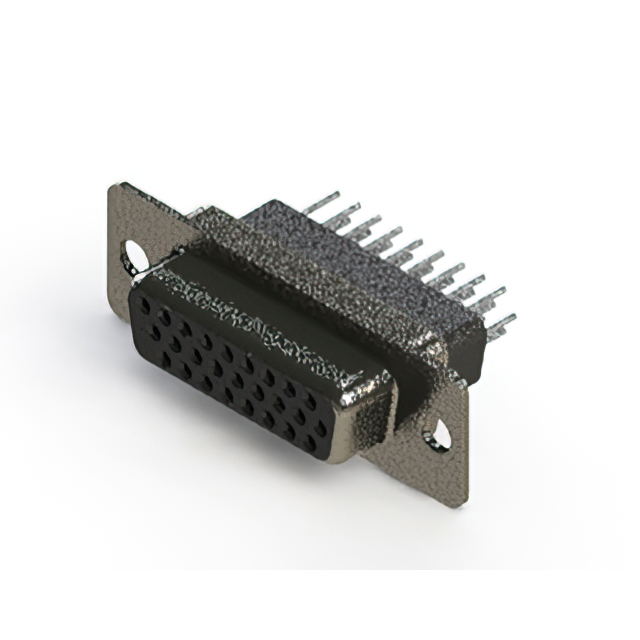

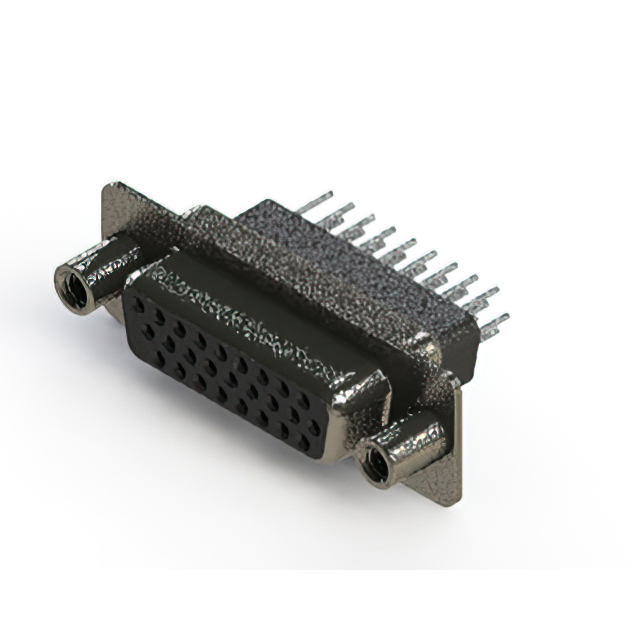

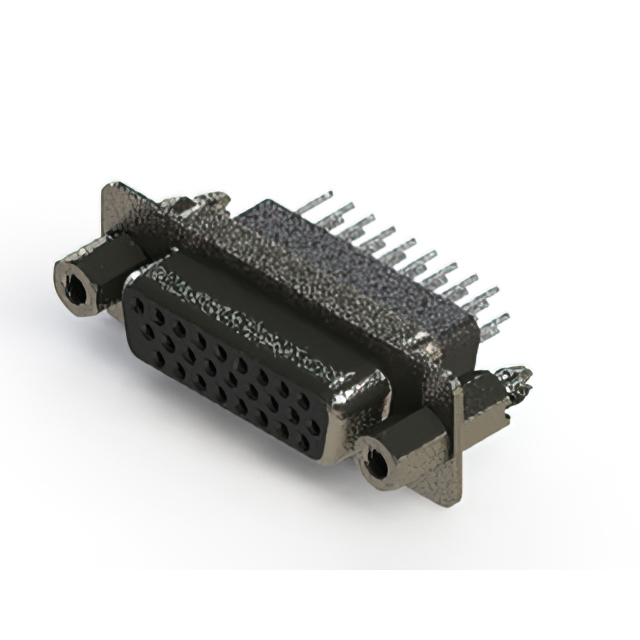

CONN D-SUB HD RCPT 26P VERT SLDR
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination | Number of Rows [custom] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Connector Style | Features | Connector Type | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Positions | Flange Feature | Contact Type | Shell Material, Finish | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Through Hole | Solder | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | 4-40 | Signal | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Through Hole | Solder | 3 | UL94 V-0 | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | 4-40 Mating Side Female Screwlock | Signal | Nickel Plated Steel | Flash | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Through Hole | Solder | 3 | UL94 V-0 | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | Housing/Shell (Unthreaded) | Signal | Nickel Plated Steel | Flash | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Through Hole | Solder | 3 | UL94 V-0 | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | 4-40 | Signal | Nickel Plated Steel | Flash | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Through Hole | Solder | 3 | UL94 V-0 | 15 µin | 0.38 µm | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | 4-40 Mating Side Female Screwlock | Signal | Nickel Plated Steel | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Free Hanging (In-Line) | 3 | UL94 V-0 | 15 µin | 0.38 µm | 3 A | D-Sub High Density | Board Lock Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | Housing/Shell | Signal | 4-40 | |||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Through Hole | Solder | 3 | UL94 V-0 | 15 µin | 0.38 µm | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | 4-40 | Signal | Nickel Plated Steel | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Through Hole | Solder | 3 | UL94 V-0 | 3 A | D-Sub High Density | Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | Housing/Shell | Signal | Nickel Plated Steel | Flash | 4-40 | ||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 125 °C | Free Hanging (In-Line) | 3 | UL94 V-0 | 3 A | D-Sub High Density | Board Lock Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | 4-40 Mating Side Female Screwlock | Signal | Nickel Plated Steel | Flash | ||||
 EDAC Inc. | Copper Alloy | Black | Polyester Thermoplastic | -55 C | 85 °C | Through Hole | Solder | 3 | UL94 V-0 | 15 µin | 0.38 µm | 3 A | D-Sub High Density | Board Lock Shielded | Receptacle Female Sockets | Gold | 2 | DA A | 26 | Housing/Shell | Signal | 4-40 |
