391-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 16POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Pitch	Pitch	Contact Material	Contact Finish	Color	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Number of Rows [custom]	Termination Rows	Number of Rows	Features
EDAC Inc. 391-016-521-203	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Dual	2
EDAC Inc. 391-016-520-204	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Dual	2

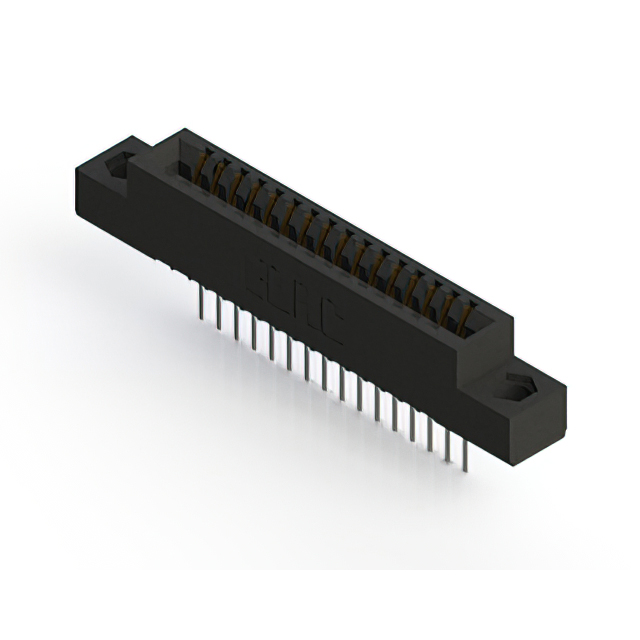

EDAC Inc. 391-016-522-104	Polyester Thermoplastic		Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Solder	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	16	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Single		1	1

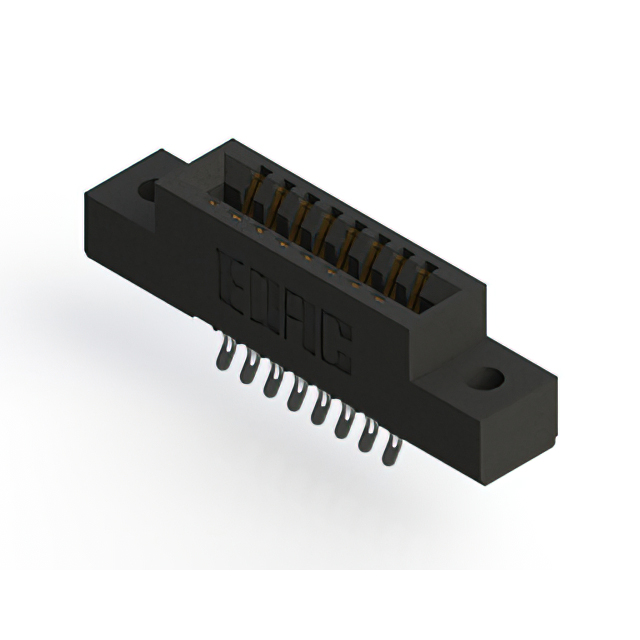

EDAC Inc. 391-016-555-202	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder Eyelet(s)	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Board Edge Straddle Mount	-40 C	105 ░C	Dual	2			Card Extender

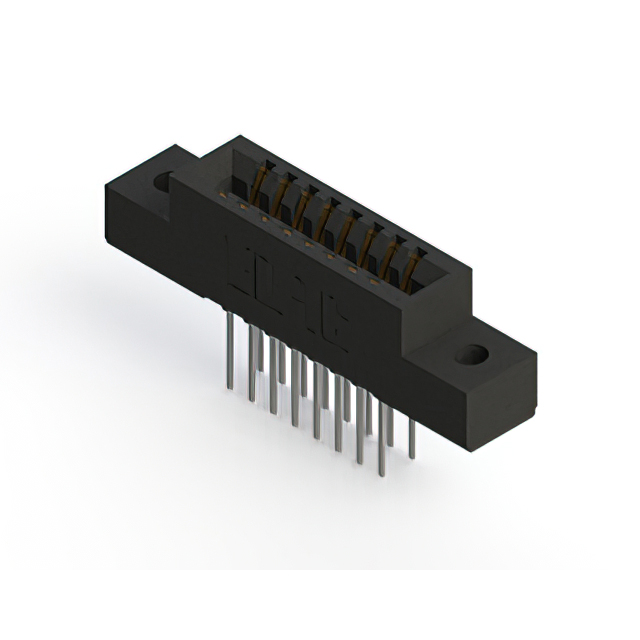

EDAC Inc. 391-016-522-202	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Dual	2

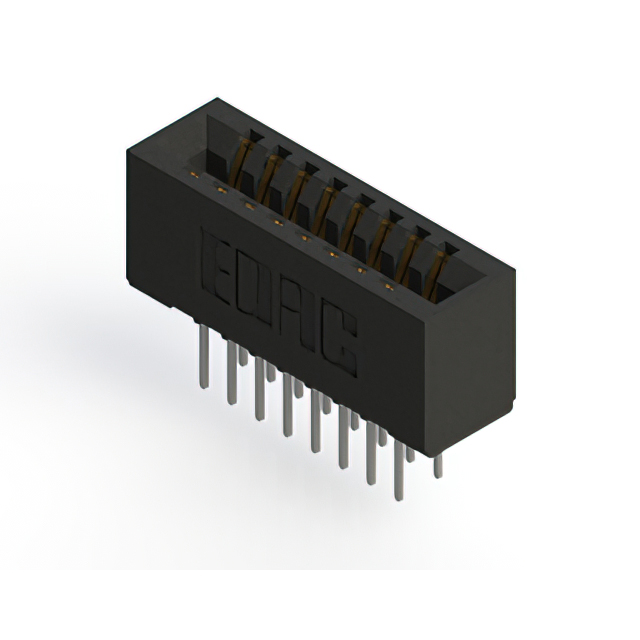

EDAC Inc. 391-016-521-201	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm				Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Dual	2
EDAC Inc. 391-016-556-201	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm				Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Board Edge Straddle Mount	-40 C	105 ░C	Dual	2			Card Extender
EDAC Inc. 391-016-556-207	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm		Flush Mount M3 Threaded Insert Top Opening		Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Dual	2			Card Extender
EDAC Inc. 391-016-524-102	Polyester Thermoplastic		Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Solder	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	16	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Single		1	1
EDAC Inc. 391-016-524-204	Polyester Thermoplastic	2	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Solder	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	8	0.1 "	2.54 mm	Copper Alloy	Gold	Black	16	Through Hole	-40 C	105 ░C	Dual	2
