179096 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

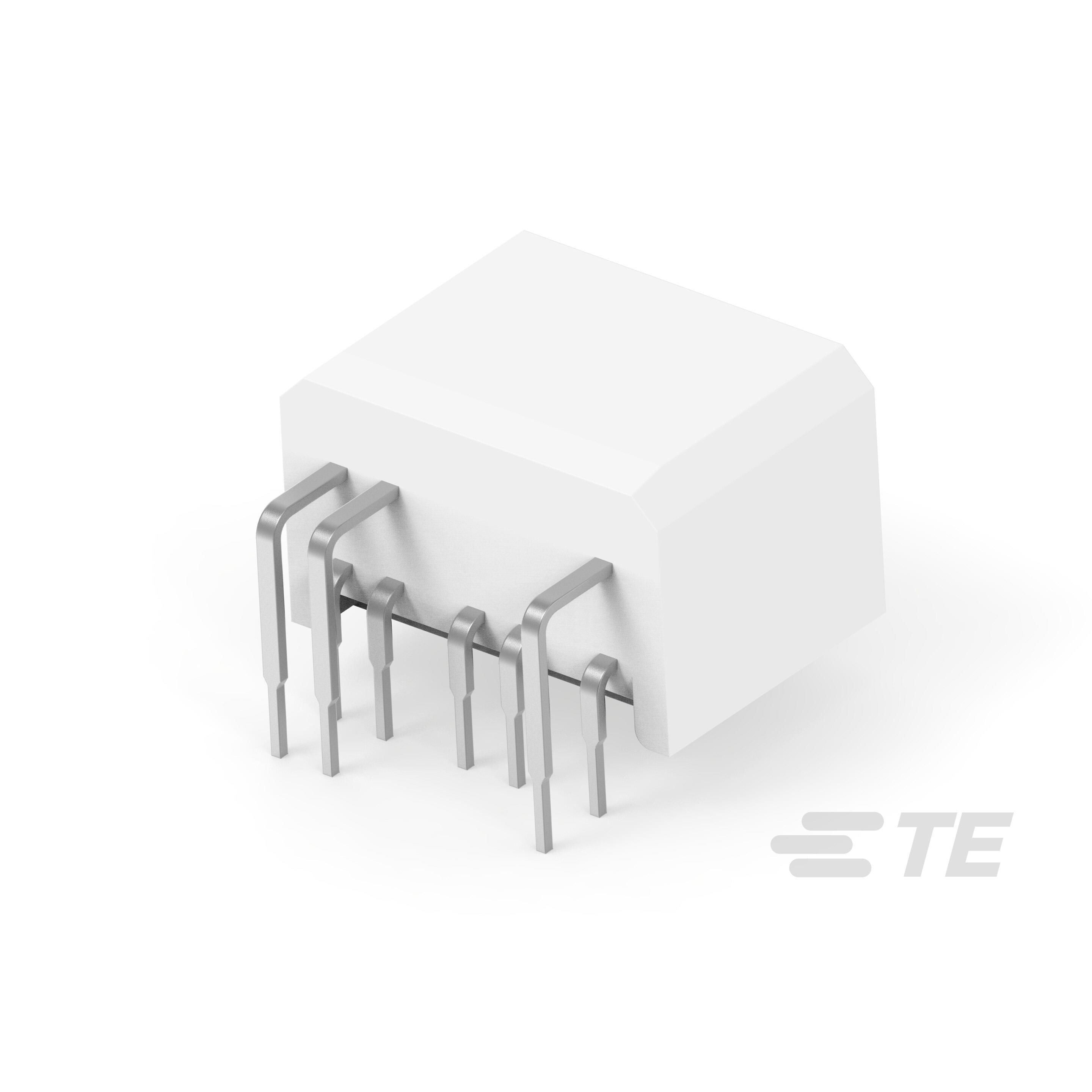

CONN HEADER R/A 8POS
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Number of Rows | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Mounting Type | Termination | Contact Type | Number of Positions | Shrouding | Contact Shape | Applications | Insulation Height | Insulation Height | Insulation Color | Fastening Type | Contact Material | Current Rating (Amps) | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5.9 mm | 0.232 " | Board to Cable/Wire | 2 | Tin | 0.157 in | 4 mm | Through Hole Right Angle | Solder | Tab | 8 | Shrouded - 4 Wall | Rectangular | Automotive General Purpose | 0.622 in | 15.8 mm | White | Latch Holder | Brass | Varies by Wire Gauge | All |
