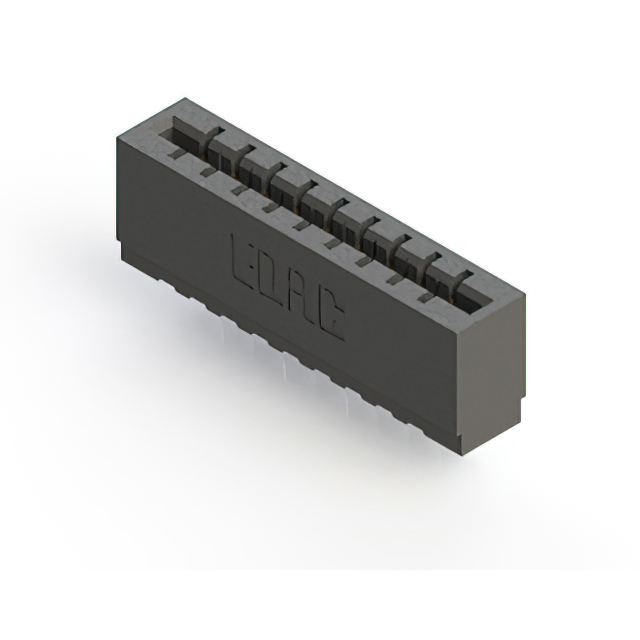

717-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 9POS 0.156
| Part | Material - Insulation | Termination Rows | Read Out | Card Type | Gender | Number of Rows | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Contact Finish | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Non Specified - Single Edge | Female | 1 | 9 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Gold | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Black | 30 Áin | 0.76 Ám | Cantilever | Copper Alloy | Through Hole |
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Non Specified - Single Edge | Female | 1 | 9 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Gold | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Black | 30 Áin | 0.76 Ám | Cantilever | Copper Alloy | Through Hole |
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Non Specified - Single Edge | Female | 1 | 9 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Gold | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 9 | Black | 30 Áin | 0.76 Ám | Cantilever | Copper Alloy | Through Hole |
